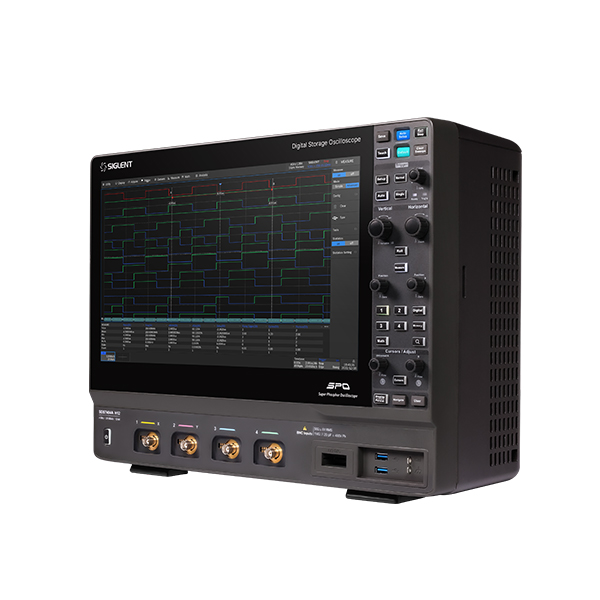

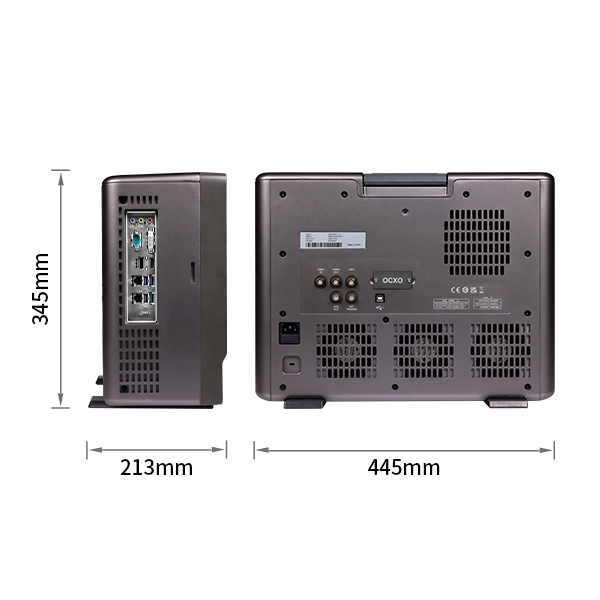

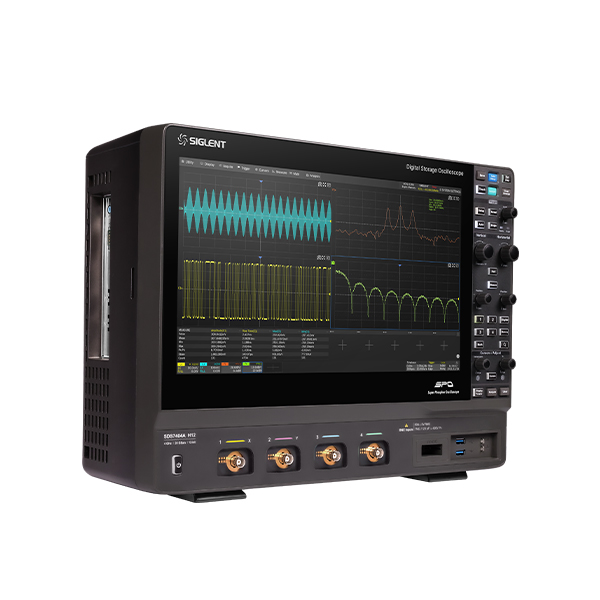

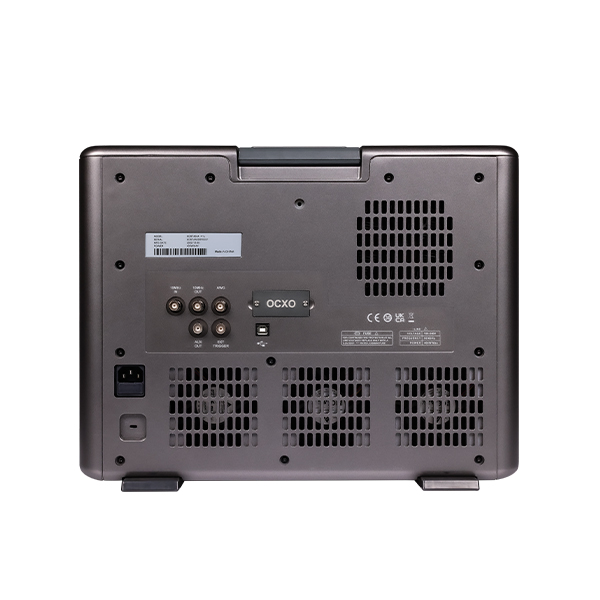

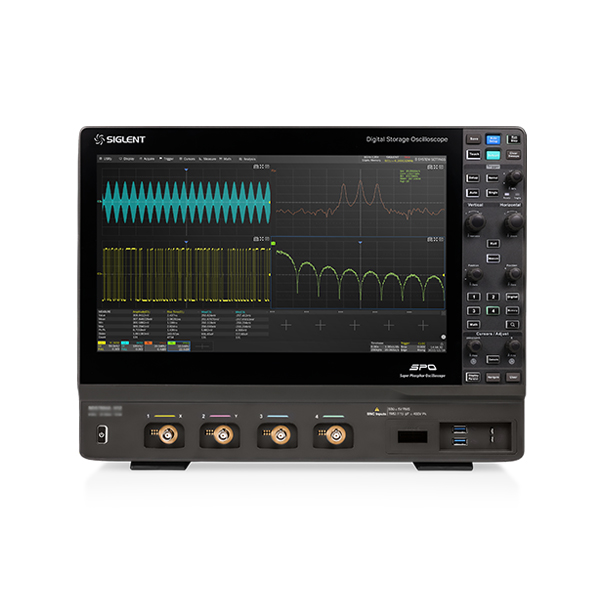

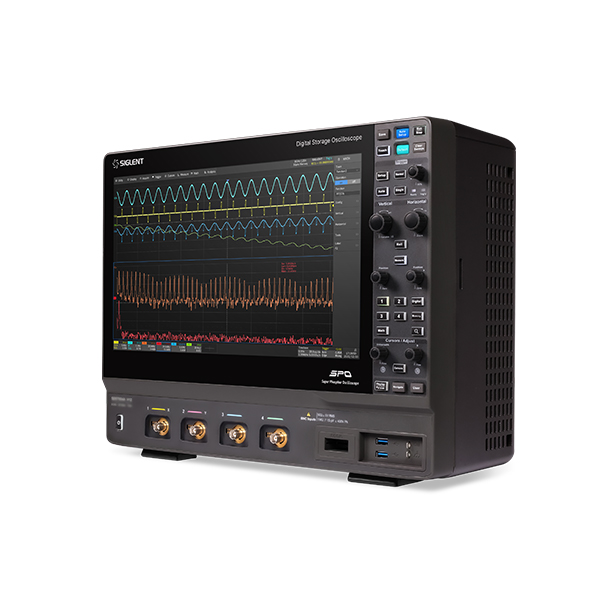

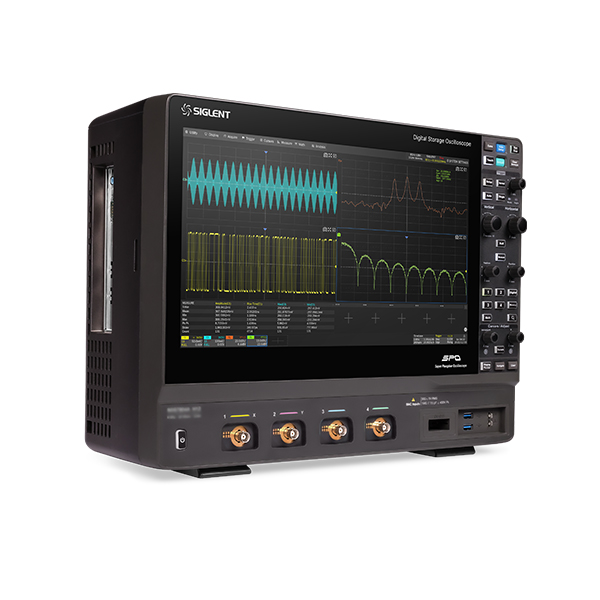

SDS7604A H12 High Resolution Oscilloscopes

6 GHz, 4 channel Oscilloscope with passive probes
$42,412.00
In Stock
Bandwidth:6 GHz
Channels:4
Max Sampling rate:20 GSa/s
ADC:12-bit

Click the link below

to be redirected to the SIGLENT website for the most comprehensive product details

Click here to view product details

Recommended Accessories

Probe

SP6150A
1.5 GHz passive probe; attenuation ratio 10:1; input resistance 500 ¦¸; input capacitance 1.8 pF; Max. input voltage 8.5 V
$286.00
SAP5000D Differential Probe
High-speed differential probe
$4,242.00
SAP2500D
Differential Active Probe, 2.6 GHz
$3,092.00
SAP4000P
4 GHz power rail probe; offset voltage range ¡À24 V; dynamic range ¡À600 mV
$5,208.00
SAP1000
Active Probe, 2 GHz
$1,149.00
SAP2500
Active Probe, 2.6 GHz
$1,942.00
HPB4010
40 MHz, 10 kVrms High Voltage Probe
$604.00
DPB5700A
100 MHz, 7kV Differential Voltage Probe
$2,680.00
DPB5700
70 MHz, 7kV Differential Voltage Probe
$2,059.00
DPB5150
70 MHz, 1500 V Differential Voltage Probe
$1,070.00
DPB5150A
100 MHz, 1500 V Differential Voltage Probe
$1,392.00
DPB1300
50 MHz, 1300 V Differential Voltage Probe
$562.00
SCP5030
50 A, 50 MHz Current Probe
$2,622.00

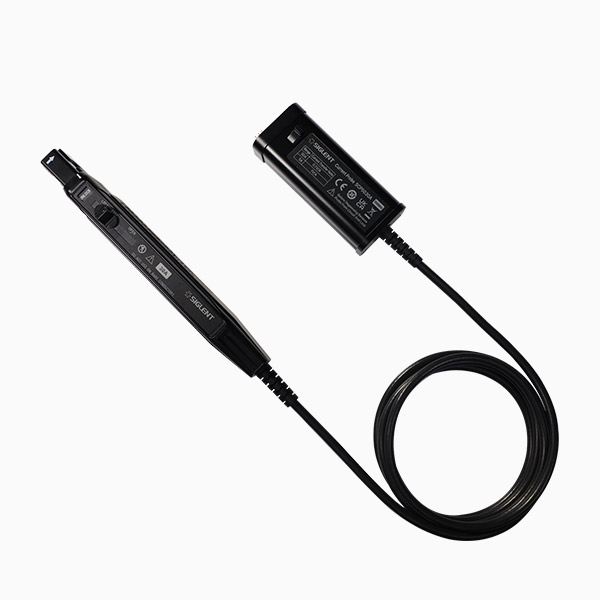

SCP5030A
50 A, 100 MHz Current Probe
$3,427.00

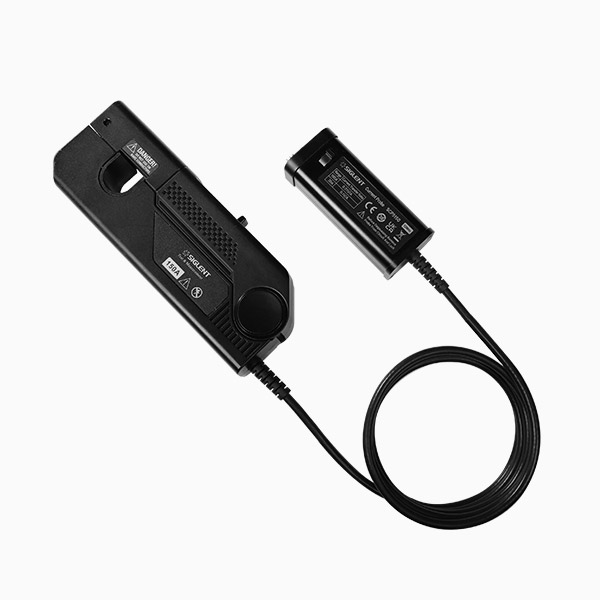

SCP5150
300 A, 12 MHz Current Probe
$4,232.00

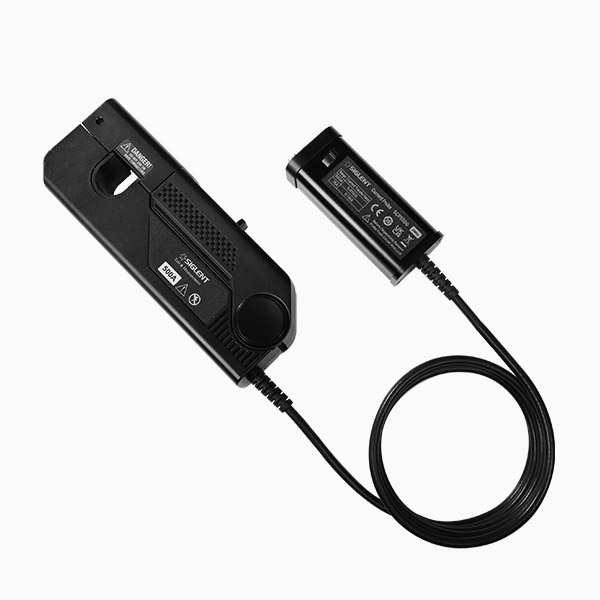

SCP5500
750 A, 2 MHz Current Probe
$6,877.00
CP6500
750 A, 5 MHz Current Probe
$6,889.00
CP6030A
50 A, 100 MHz Current Probe
$3,686.00
CP6150
300 A, 12 MHz Current Probe
$4,944.00
CP4070A
200 A, 300 kHz Current Probe
$914.00
CP6030
50 A, 50 MHz Current Probe
$2,628.00
CP4050
140 A, 1 MHz Current Probe
$1,317.00
CP4070
200 A, 300 kHz Current Probe
$811.00
CP4020
60 A, 200 kHz Current Probe
$535.00
CPL5100
100 A, 600 kHz Current Probe
$535.00
SPL2016
Waveform generator (software)
$546.00

Others

DF2001A
Deskew fixture for voltage and current probes
$305.00
STB3
Oscilloscope training and teaching signal board
$236.00
CASE-S1
Hard transport case for SNA5000, SSA5000, SDS6000 series
$535.00
USB-GPIB
USB-GPIB Adapter
$167.00
FX-USB2
USB 2.1 test fixture
$1,271.00
FX-ETH
100Base-TX and 1001Base-T compliance test fixture
$1,271.00
FX-AMETH
100Base-T1 and 1000Base-T2 compliance test fixture
$1,271.00
FX-MGETH
2.5G/5G/10G Ethernet test fixture
$1,271.00
SDS7000A-RMK
Rack Mount Kit
$580.00

Recommended Options

Trigger/Decode Options

SDS7000A-SENT
SENT trigger and decode (software)
$633.00
SDS7000A-ARINC
ARINC429 trigger and decode (software)
$633.00
SDS7000A-Manch
Manchester decode (software)
$633.00
SDS7000A-USB2
USB 2.1 decode (software)
$633.00
SDS7000A-FlexRay
FlexRay trigger and decode (software)
$633.00
SDS7000A-I2S
I2S trigger and decode (software)
$633.00
SDS7000A-1553B
MIL-STD-1553B trigger and decode (software)
$633.00
SDS7000A-CANFD
CAN FD trigger and decode (software)
$633.00
SDS7000A-CANXL
CAN XL decode (software)
$633.00

Analysis Options

SDS7000A-EJ
Eye Diagram/Jitter Analysis (software)
$2,289.00
SDS7000A-FG
Waveform generator (software)
$851.00
SDS7000A-RFA
RTSA / DDC / Signal Analysis (software), A models
$8,580.00
SDS7000A-CT-DP
MIPI-DPHY compliance test (software)
$7,380.00
SDS7000A-CT-DDR
DDR2/DDR3 compliance test (software)
$7,380.00
SDS7000A-CT-100BASE-T
101Base-TX compliance test (software)
$2,496.00
SDS7000A-CT-1000BASE-T
1001Base-T compliance test (software)
$4,198.00
SDS7000A-CT-100BASE-T1
100Base-T2 compliance test (software)
$2,703.00
SDS7000A-CT-1000BASE-T1
1000Base-T2 compliance test (software)
$4,474.00
SDS7000A-CT-USB2
USB 2.1 compliance test (software)
$598.00
SDS7000A-PA
Power Analysis (software): includes Power Quality, Current Harmonics, and more
$1,886.00
SDS7000A-CT-2.5/5/10GBASE-T
2.5G/5G/10G Base-T compliance test (software)
$5,880.00

Upgrades Options

10M_OCXO_L
High accuracy clock source ( Assembled in factory only)
$1,379.00
SDS7000A-BW3T4
3 GHz to 4 GHz bandwidth upgrade (software)
$8,671.00
SDS7000A-BW6T8
6 GHz to 8 GHz bandwidth upgrade (software)
$24,800.00
SDS7000AP-BW6T8
6 GHz to 8 GHz bandwidth upgrade (software), AP models
$22,800.00

Standard Accessories

Probe

SP6150A
1.5 GHz passive probe; attenuation ratio 10:1; input resistance 500 ¦¸; input capacitance 1.8 pF; Max. input voltage 8.5 V
SP3150A
Passive Probe: 10X attenuation,11pf,10Mohm, 500MHz,CAT II 400Vrms (Only for scopes BW higher than 2GHz)

Standard Configurations

USB Cable
Wireless Mouse
Calibration certificate
Power-Cord
Quick Start
Protective Cover
Protective Cover for SNA5000A, SDS6000A, SSA5000A

Downloads

Products-Selection-Guide

Version: 202511

Time: 21/7/2025

SDS7000A-Datasheet

Version: EN03A

Time: 21/7/2025

SDS7000A-User-Manual

Version: EN01A

Time: 21/7/2025
