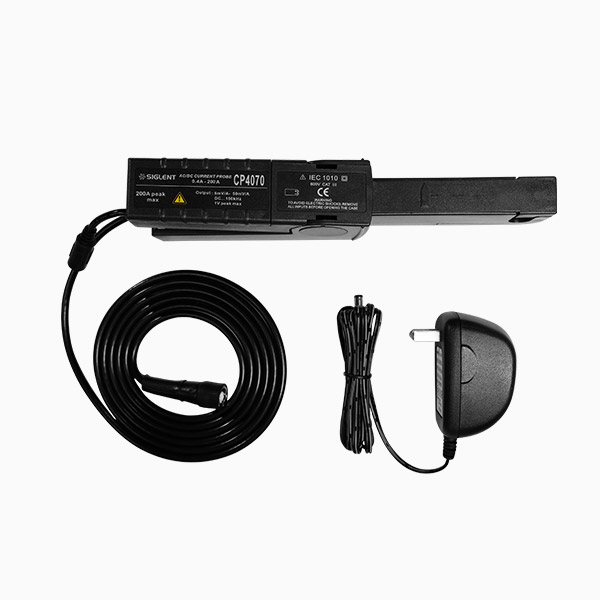

CP4070 US/CN
US customer service via email, phone, or chat
$811.00
Out of Stock
Inventory Available on or about 12/26/25
Bandwidth: 150 KHz
Maximum Continuous Current: 70 Arms
...
Maximum Continuous Current: 70 Arms
...
Bandwidth: 150 KHz
Maximum Continuous Current: 70 Arms
Peak Current: 200 A
Switching Ratio: 500 mV/A; 50 mV/A
DC Measurement Accuracy: 500 mV/A (20 mA-14 ApK) ±3% ±20 mA; 50 mV/A (200 mA-100 ApK )±4%± 200 mA; 50 mV/A (100 A-140 ApK) ±15%
Power: 9 V battery
