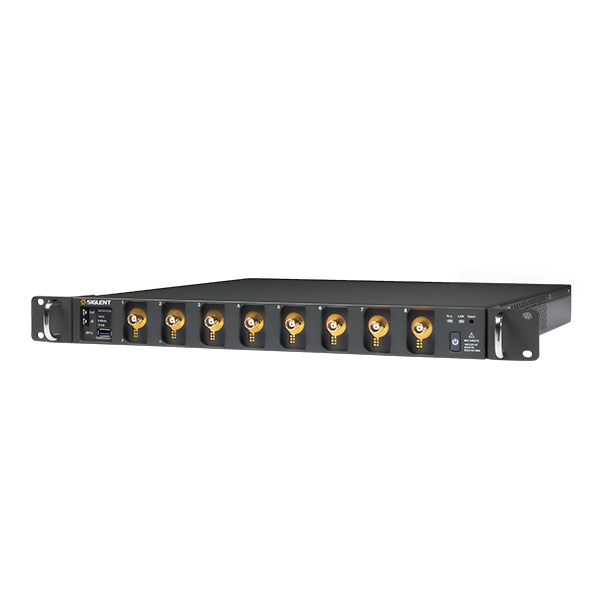

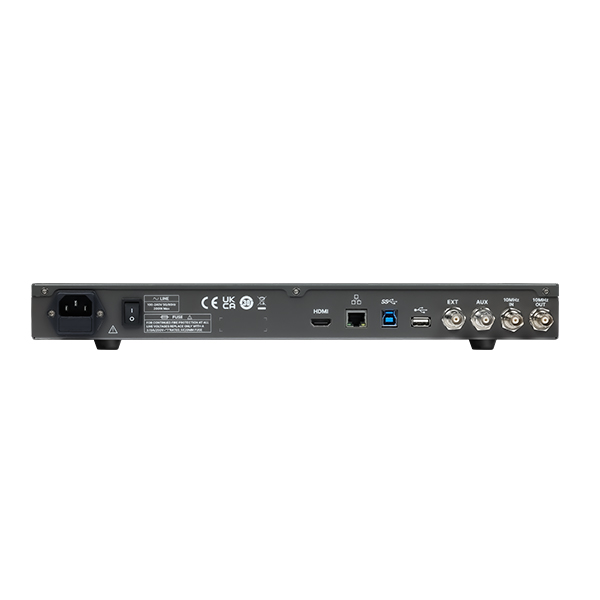

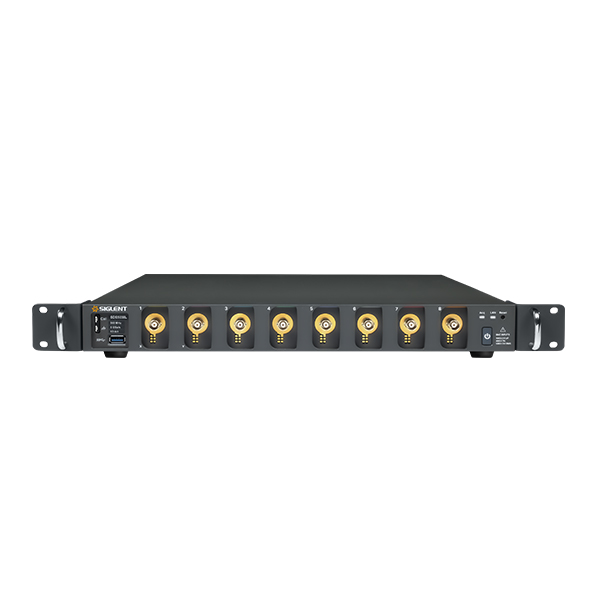

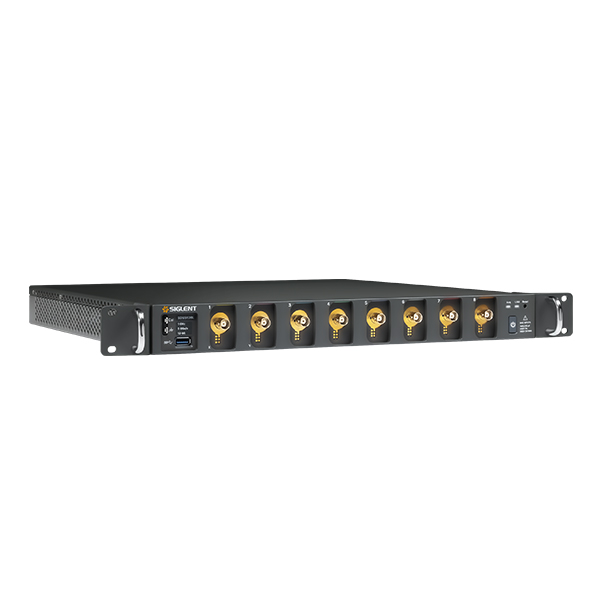

SDS5108L High Resolution Oscilloscopes
1 GHz, 8 channel Oscilloscope with passive probes
$15,680.00
In Stock
In Stock: will ship in 1-3 days
SIGLENT's SDS5000L Series High Resolution Oscilloscopes are available in 350 MHz/500 MHz/1 GHz bandwidths.
SDS5108L offers a 1 GHz bandwidth, comes with 8 channels, and features a 12-bit vertical resolution, 5 GSa/s sampling rate, 2.
5 Gpts/CH maximum memory depth, and a waveform capture rate of up to 160,000 wfm/s.
SDS5108L offers a 1 GHz bandwidth, comes with 8 channels, and features a 12-bit vertical resolution, 5 GSa/s sampling rate, 2.
5 Gpts/CH maximum memory depth, and a waveform capture rate of up to 160,000 wfm/s.
Click the link below
to be redirected to the SIGLENT website for the most comprehensive product details
Click here to view product details
Recommended Accessories
Probe
1.5 GHz passive probe; attenuation ratio 10:1; input resistance 500 Ω; input capacitance 1.8 pF; Max. input voltage 8.5 V
$286.00
Current probe, DC-200 kHz bandwidth, attenuation ratio of 20X/200X, maximum input of 20Arms/60Ap-p, 9V adapter for power supply.
$914.00
Current probe, DC-200 kHz bandwidth, attenuation ratio of 20X/200X, maximum input of 20Arms/60Ap-p, 9V adapter for power supply.
$811.00
16 Channel Logic Analyzer Probe Kit for SDS2000X Plus, SDS2000XHD, SDS5000X, and SDS6000A series
Logic Probe, 16-channel, 1 GSa/s, 50 Mpts/ch
Logic Probe, 16-channel, 1 GSa/s, 50 Mpts/ch
$546.00
Others
Power analysis deskew fixture.
For use with voltage and current probes and the Power Analysis option available on oscilloscopes.
The phase calibration board, used in conjunction with power analysis software, is used to calibrate the phase difference generated by the voltage and current probes during transmission.
For use with voltage and current probes and the Power Analysis option available on oscilloscopes.
The phase calibration board, used in conjunction with power analysis software, is used to calibrate the phase difference generated by the voltage and current probes during transmission.
$305.00
Soft Carry Case for SDS2000X, SDS2000X Plus, SDS2000X HD, SDS5000X, SSA3000X, SVA1000X, SSA3000X-R, SSA3000X Plus
$167.00
Isolated USB function/arbitrary waveform generator, 125 Msa/s, 16 kpts Arb Wave Length, Isolation Voltage ¡À42 Vpk (Hardware)
$328.00
