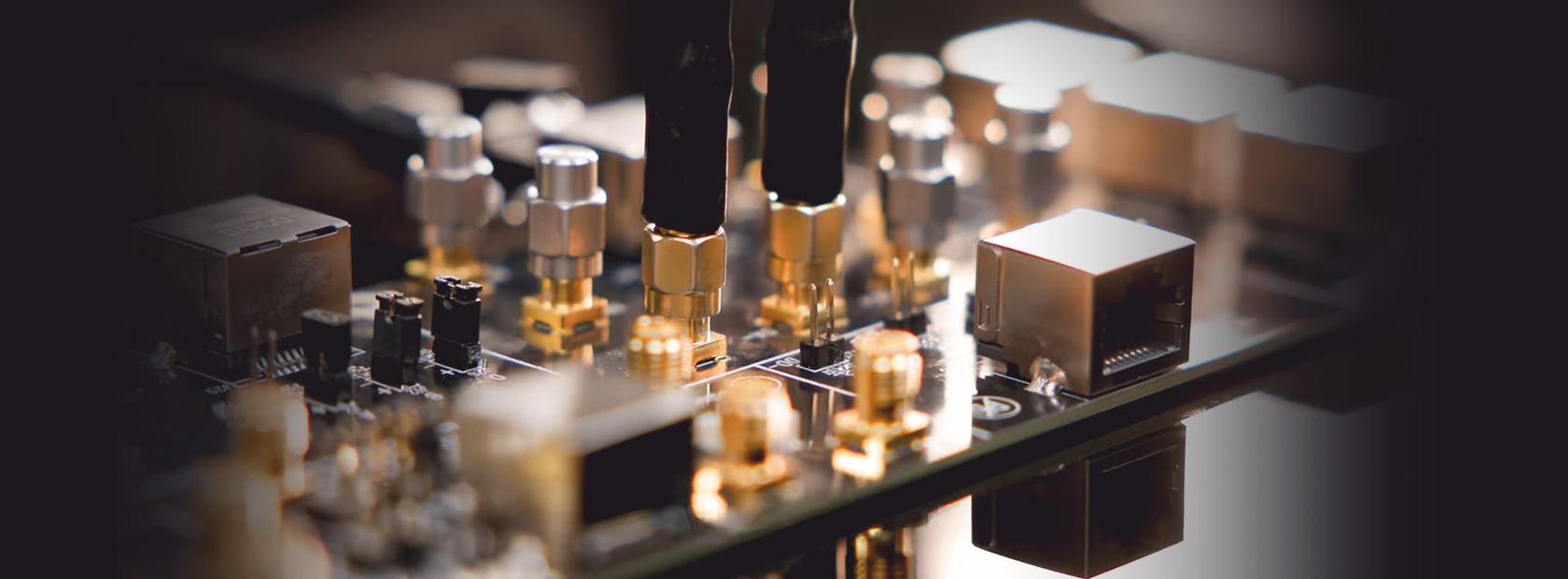

USB 2.0 Electrical Conformance Testing Solution

Thanks to its high speed, convenience, and scalability, USB ports have gradually replaced traditional serial and parallel ports since its introduction in 1995. USB ports are widely adopted in various peripheral devices and have earned strong consumer preference. While the wide adoption of USB devices has brought tremendous convenience, it also brings inevitable challenges such as connection compatibility issues, transmission interruptions, and file transfer errors. USB conformance testing is therefore essential, not only to comply with USB Implementers Forum (USB-IF) requirements but also to ensure interoperability and guarantee product quality and reliability for manufacturers integrating USB interfaces. USB 2.0 Electrical Conformance Testing Solution

Scenarios

  • High-speed Downstream Testing

    High-speed Downstream Testing

  • Full-speed Downstream Testing

    Full-speed Downstream Testing

  • Low-speed Downstream Testing

    Low-speed Downstream Testing

  • VBus Testing

    VBus Testing

Solution

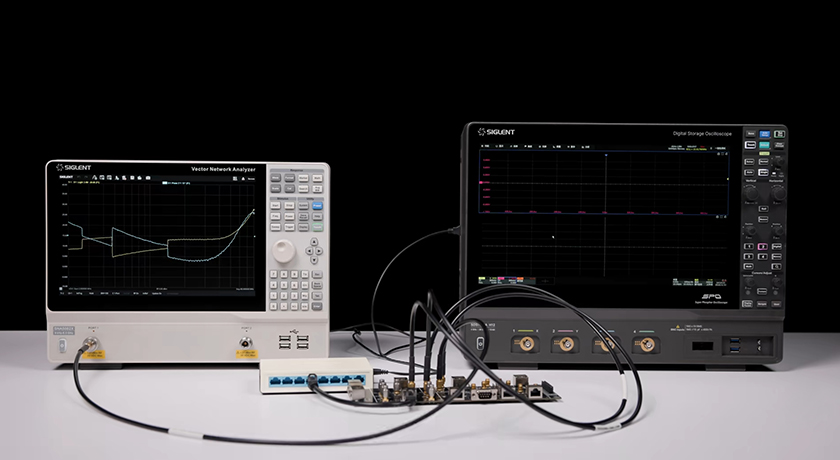

As a crucial verification step before product shipment, USB 2.0 conformance testing plays a vital role in product development and manufacturing processes today. This process often involves substantial workloads. SIGLENT Technologies has been optimizing its USB 2.0 conformance testing solution toward a simpler, more standardized, and automated implementation. It eliminates tedious manual oscilloscope configuration, cursor placement, and result comparison against USB 2.0 specifications. With intuitive configuration procedures and graphical connection guides, the solution significantly reduces testing complexity and improves production efficiency.

Download Solution

Related Products



prouct Bandwidth Channels ADC Max Sampling rate Max Memory depth Price
SDS5034X HD 350 MHz 4 12-bit 5 GSa/s 2.5 Gpts/CH 8080
SDS5054X HD 500 MHz 4 12-bit 5 GSa/s 2.5 Gpts/CH 9680
SDS5104X HD 1 GHz 4 12-bit 5 GSa/s 2.5 Gpts/CH 12680
SDS5036X HD 350 MHz 6 12-bit 5 GSa/s 2.5 Gpts/CH 8880
SDS5056X HD 500 MHz 6 12-bit 5 GSa/s 2.5 Gpts/CH 11280
SDS5106X HD 1 GHz 6 12-bit 5 GSa/s 2.5 Gpts/CH 14980
SDS5038X HD 350 MHz 8 12-bit 5 GSa/s 2.5 Gpts/CH 9980
SDS5058X HD 500 MHz 8 12-bit 5 GSa/s 2.5 Gpts/CH 12980
SDS5108X HD 1 GHz 8 12-bit 5 GSa/s 2.5 Gpts/CH 16680
