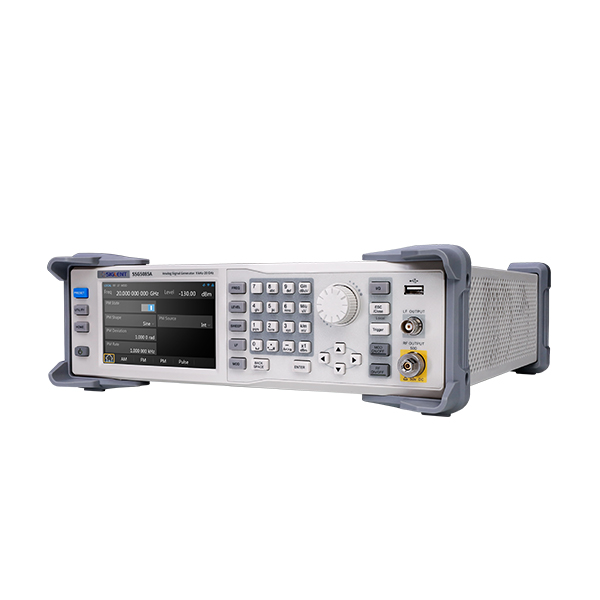

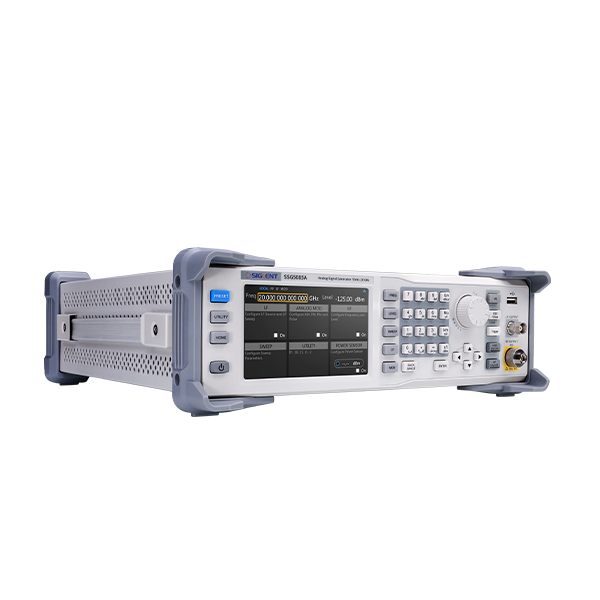

SSG5085A RF Siqnal Source

20 GHz RF Signal Generator
$22,989.00
In Stock
Frequency Range:(CW)9k-13.6GHz
Frequency Resolution:0.001 Hz
Amplitude Resolution:0.01 dB
Phase Noise:-120 dBc/Hz @1 GHz, offset 20 kHz (typ.)

Click the link below

to be redirected to the SIGLENT website for the most comprehensive product details

Click here to view product details

Recommended Accessories

Cable

SMA-SMA-26L
SMA(M)-SMA(M) cable, 26 GHz
$518.00
V26-N35FA35F-25IN
NMD 3.5 mm female - APC 3.5 mm female; 26.5 GHz; length 25''/635mm
$1,656.00
SMA-SMA-18L
SMA(M)-SMA(M) cable, 18 GHz
$339.00
S18-NMSF-1M
N(M)-SMA(F) RF Cable DC~18 GHz,1000 mm
$339.00
N-N-18L
N(M)-N(M) cable, 18 GHz
$339.00
N-SMA-18L
N(M)-SMA(M) cable, 18 GHz
$339.00
SMAF-SMA-26L
SMA(F)-SMA(M) cable, 26.5 GHz, 1000 mm
$518.00
V26-N35MN35F-25IN
NMD 3.5 mm male - NMD 3.5 mm female; 26.5 GHz; length 25''/635mm
$1,656.00

Others

SSG-RMK
Rack Mount kit; SSG3000X, SSG5000X, SSG5000A, SDG7000A; Height 3U
$217.00
USB-GPIB
USB-GPIB Adapter
$167.00

Recommended Options

Options

SSG5080A-LP
110dB Attenuator module (hardware, assembled and calibrated in factory only)
$5,279.00
SSG5080A-PU
Pulse modulation (software license)
$2,737.00
SSG5080A-PT
Pulse train generator (software license)
$2,737.00

Standard Accessories

Standard

USB Cable
Calibration certificate
Power-Cord
Quick Start
2.92F-2.92F-40A
2.92 mm Female - 2.92 mm Female adaptor, 40 GHz

Downloads

SSG5000A-Datasheet

Version: EN02C

Time: 21/7/2025

Products-Selection-Guide

Version: 202511

Time: 21/7/2025

Quantity

$22,989.00
Selected 1 Items: SSG5085A
