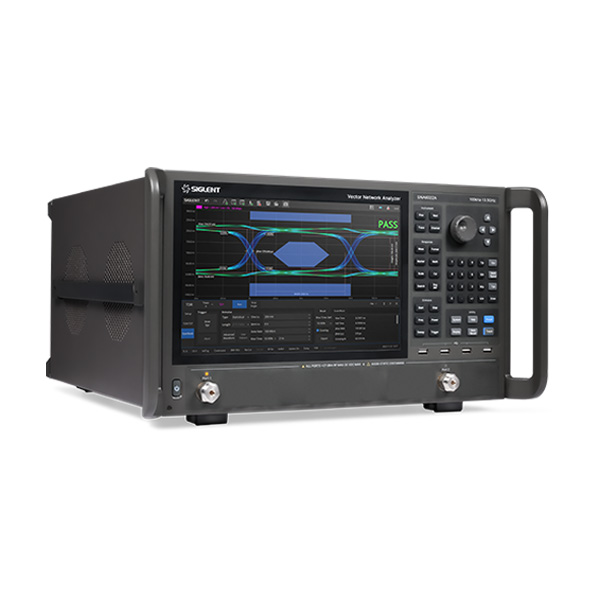

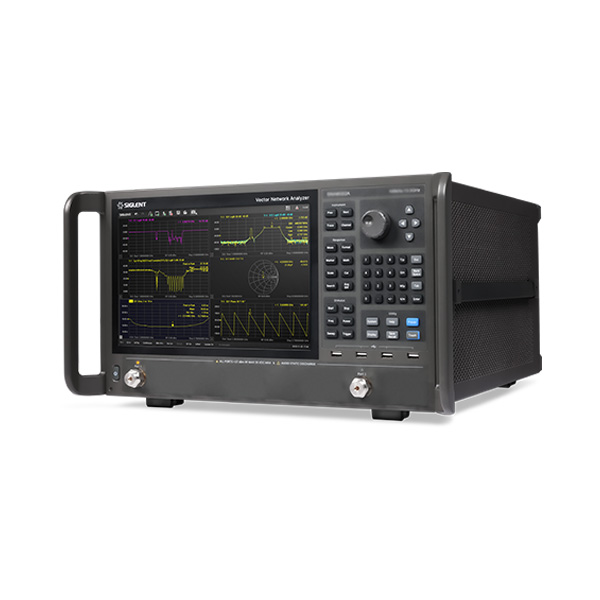

SNA6022A Vector Network Analyzer

26.5 GHz, 2 port RF Vector Network Analyzer
$43,281.00
Out of Stock Inventory Available on or about 12/26/25
SNA Frequency Range:100 kHz - 13.5 GHz
Ports:2
Frequency Resolution :1Hz
Level resolution:0.05dB
Range of IFBW: 1 Hz-10 MHz
Setting range of output level: -60 dBm ~ +20 dBm

Click the link below

to be redirected to the SIGLENT website for the most comprehensive product details

Click here to view product details

Recommended Accessories

Cable

SMA-SMA-18L
SMA(M)-SMA(M) cable, 18 GHz
$339.00
S18-NMSF-1M
N(M)-SMA(F) RF Cable DC~18 GHz,1000 mm
$339.00
N-N-18L
N(M)-N(M) cable, 18 GHz
$339.00
N-SMA-18L
N(M)-SMA(M) cable, 18 GHz
$339.00

Others

ASP-26
Adjustable Single-end TDR probe DC~26.5 GHz
$1,685.00
ADP-26
Adjustable Differential TDR probe DC~26.5 GHz
$1,811.00
ASP-18
Adjustable Single-end TDR probe DC~18 GHz
$1,432.00
ADP-18
Adjustable Differential TDR probe DC~18 GHz
$1,558.00
SNA-TB01
RF demonstration board
$1,369.00
USB-GPIB
USB-GPIB Adapter
$167.00

Recommended Options

Calibration parts

KWR42A
18-26.5 GHz waveguide calibration kit
$6,268.00
F505FS
Mechanical Calibration Kit: OSLT, DC - 18 GHz, N- Female connector
$3,200.00
F505TS
Mechanical Calibration Kit: OSLT, DC - 18 GHz, N-Male and Female connector
$5,826.00
F505MS
Mechanical Calibration Kit: OSLT, DC - 18 GHz, N-Male connector
$3,200.00
SEM5022A
2 ports, 100 kHz~13.5 GHz, 3.5 mm female
$4,249.00

Options

SNA6000-TDR
Enhanced Time-Domain analysis (Software)
$8,229.00
SNA6000-TDA
Time-Domain analysis (Software)
$2,295.00
SNA6000-PM
Pulse measurement (Software)
$6,872.00
SNA6000-SMM
Scalar mixer measurement (Software)
$3,698.00
SNA6000-MT
Materials Measurement license for SNAN000A (software license) - requires Waveguide kit: KWR42A
$6,447.00
SNA6000-SA
Spectrum analysis (Software)
$2,318.00

Standard Accessories

Standard

USB Cable
Wireless Mouse
Calibration certificate
Power-Cord
Quick Start
Protective Cover
Protective Cover for SNA5000A, SDS6000A, SSA5000A

Downloads

SNA6000A-Datasheet

Version: EN01A

Time: 21/7/2025

Products-Selection-Guide

Version: 202511

Time: 21/7/2025
