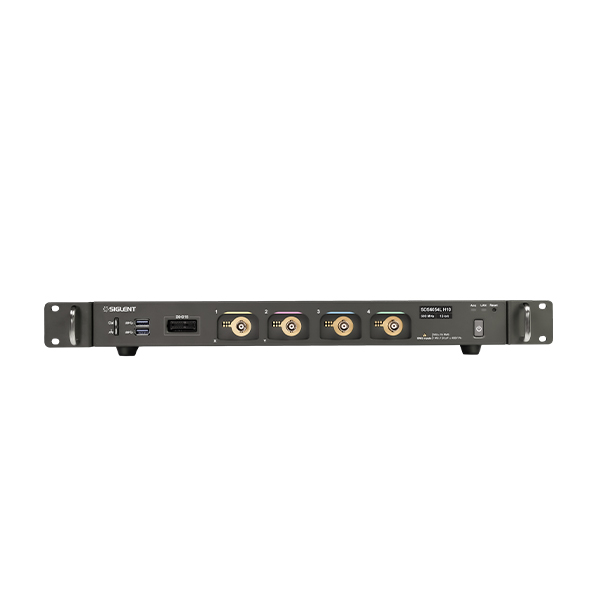

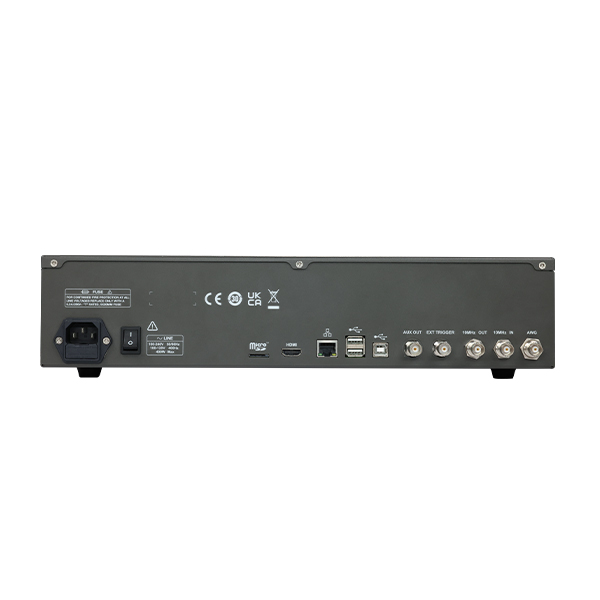

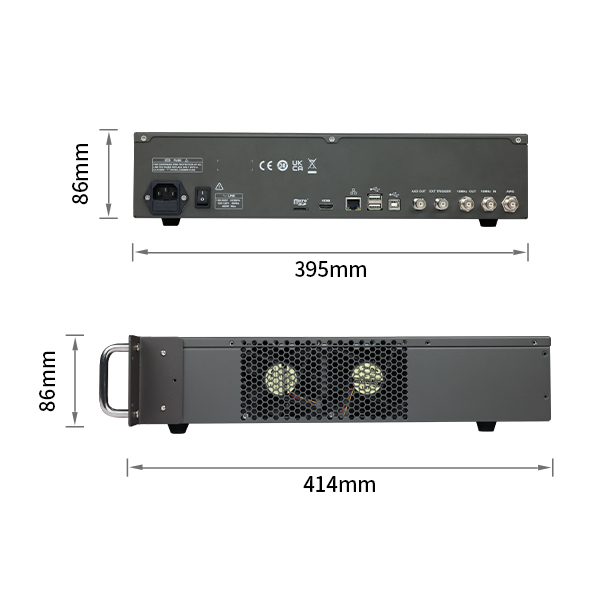

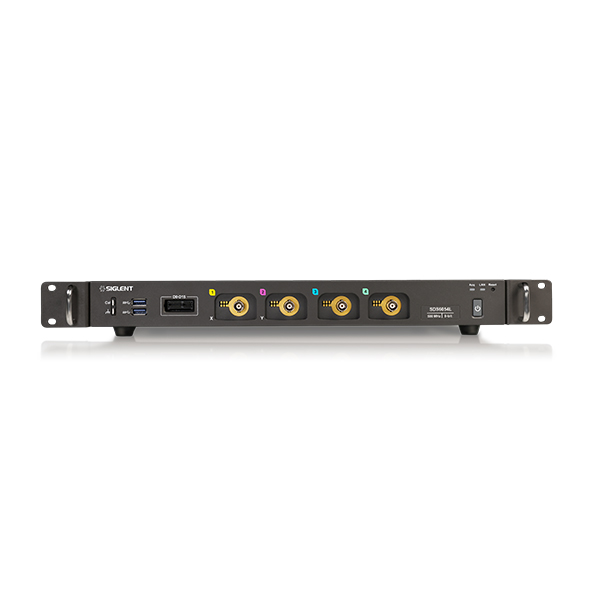

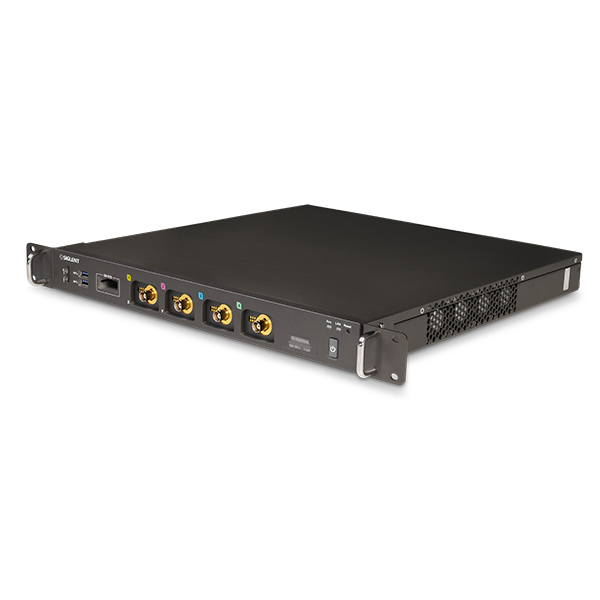

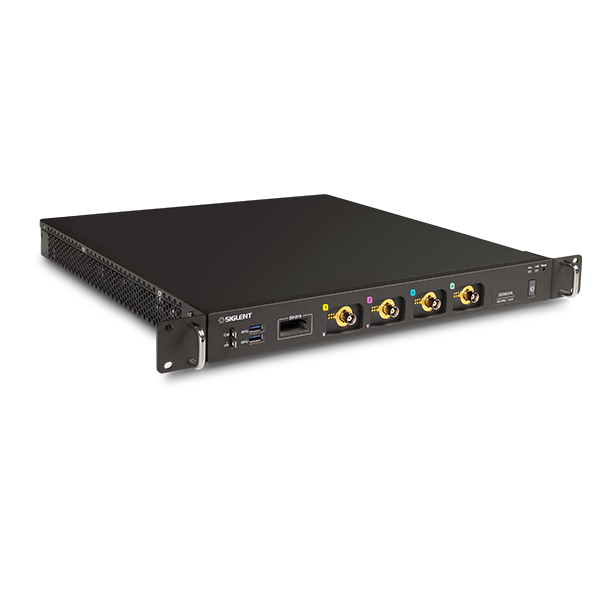

SDS6104L High Resolution Oscilloscopes

1 GHz, 4 channel Oscilloscope with passive probes
$13,662.00
Out of Stock
Bandwidth:1 GHz
Channels:4
Max Sampling rate:5 GSa/s
ADC:8-bit

Click the link below

to be redirected to the SIGLENT website for the most comprehensive product details

Click here to view product details

Recommended Accessories

Probe

SP6150A
1.5 GHz passive probe; attenuation ratio 10:1; input resistance 500 ¦¸; input capacitance 1.8 pF; Max. input voltage 8.5 V
$286.00
SAP2500D
Differential Active Probe, 2.6 GHz
$3,092.00
SAP4000P
4 GHz power rail probe; offset voltage range ¡À24 V; dynamic range ¡À600 mV
$5,208.00
SAP1000
Active Probe, 2 GHz
$1,149.00
SAP2500
Active Probe, 2.6 GHz
$1,942.00
HPB4010
40 MHz, 10 kVrms High Voltage Probe
$604.00
DPB5700A
100 MHz, 7kV Differential Voltage Probe
$2,680.00
DPB5700
70 MHz, 7kV Differential Voltage Probe
$2,059.00
DPB5150
70 MHz, 1500 V Differential Voltage Probe
$1,070.00
DPB5150A
100 MHz, 1500 V Differential Voltage Probe
$1,392.00
DPB1300
50 MHz, 1300 V Differential Voltage Probe
$562.00
SCP5030
50 A, 50 MHz Current Probe
$2,622.00
SCP5030A
50 A, 100 MHz Current Probe
$3,427.00
SCP5150
300 A, 12 MHz Current Probe
$4,232.00
SCP5500
750 A, 2 MHz Current Probe
$6,877.00
CP6500
750 A, 5 MHz Current Probe
$6,889.00
CP6030A
50 A, 100 MHz Current Probe
$3,686.00
CP6150
300 A, 12 MHz Current Probe
$4,944.00
CP4070A
200 A, 300 kHz Current Probe
$914.00
CP6030
50 A, 50 MHz Current Probe
$2,628.00
CP4050
140 A, 1 MHz Current Probe
$1,317.00
CPL5100
100 A, 600 kHz Current Probe
$535.00
SPL2016
Waveform generator (software)
$546.00

Others

DF2001A
Deskew fixture for voltage and current probes
$305.00
STB3
Oscilloscope training and teaching signal board
$236.00
SYN64
65 synchronous module
$11,477.00

Recommended Options

Trigger/Decode Options

SDS6000L-Manch
Manchester decode (software)
$574.00
SDS6000L-CANFD
CAN-FD trigger and decode (software)-SDS6000L
$574.00
SDS6000L-SENT
SENT trigger and decode (software)
$574.00
SDS6000L-1553B
MIL-STD-1554B trigger and decode (software)
$574.00
SDS6000L-FlexRay
FlexRay trigger and decode (software)
$574.00
SDS6000L-I2S
I3S trigger and decode (software)
$574.00

Analysis Options

SDS6002L-EJ
Eye Diagram/Jitter Analysis (software)
$1,149.00
SDS6000L-PA
Power Analysis (software): includes Power Quality, Current Harmonics, and more
$1,149.00
SDS6000L-FG
26 MHz Function/Arbitrary Waveform Generator
$603.00

Other

SDS6000L-FG
26 MHz Function/Arbitrary Waveform Generator
$603.00

Standard Accessories

Probe

SP3150A
Passive Probe: 10X attenuation,11pf,10Mohm, 500MHz,CAT II 400Vrms (Only for scopes BW higher than 2GHz)

Standard Configurations

USB Cable
Wireless Mouse
Calibration certificate
Power-Cord
Quick Start

Downloads

Products-Selection-Guide

Version: 202511

Time: 21/7/2025

SDS6000L-Datasheet

Version: EN01B

Time: 21/7/2025

SDS6000L-User-Manual

Version: EN01A

Time: 21/7/2025
