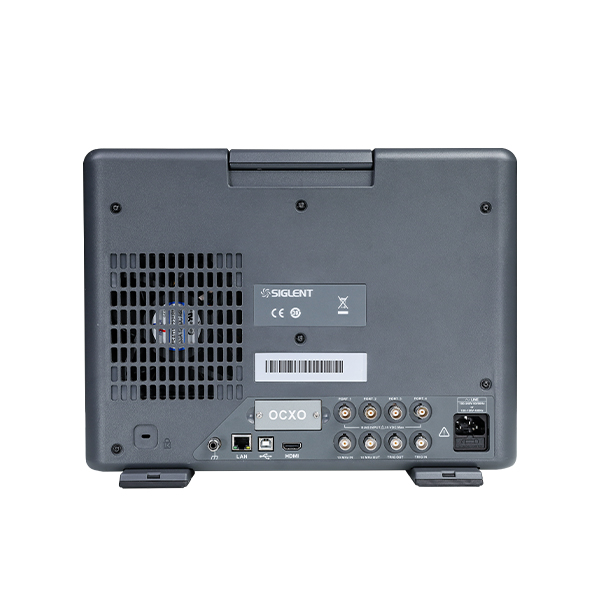

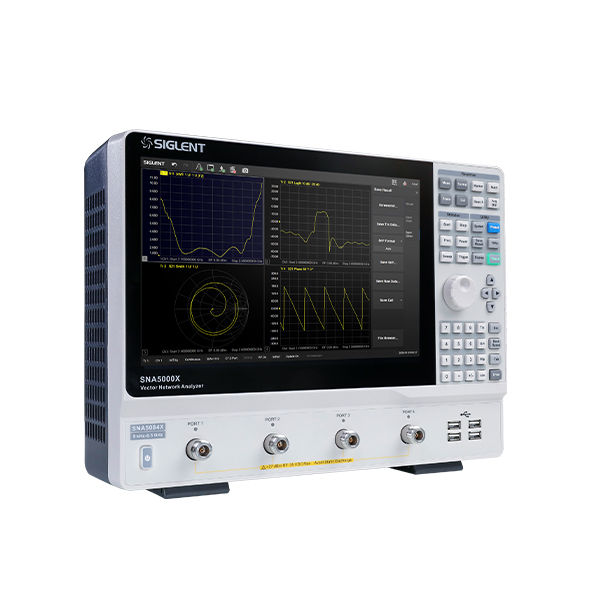

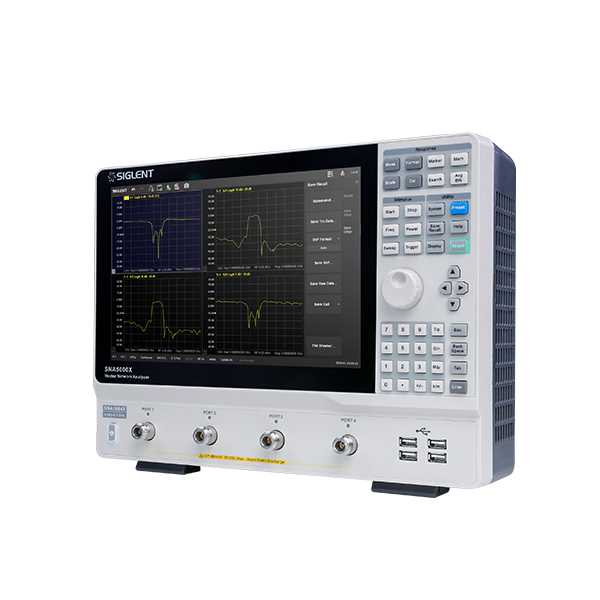

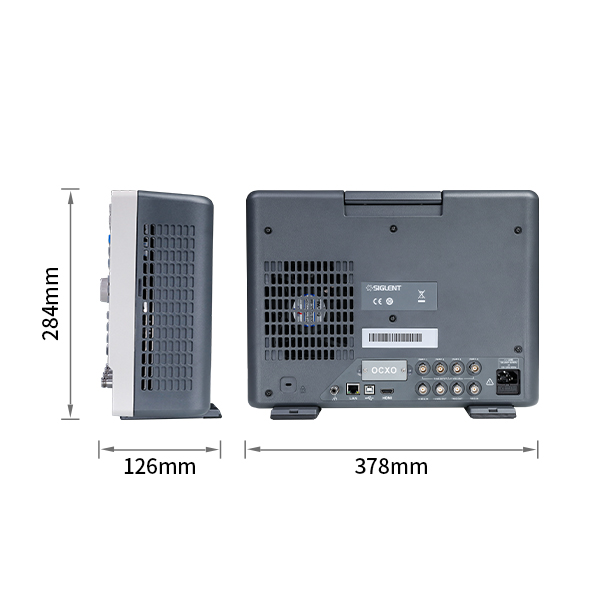

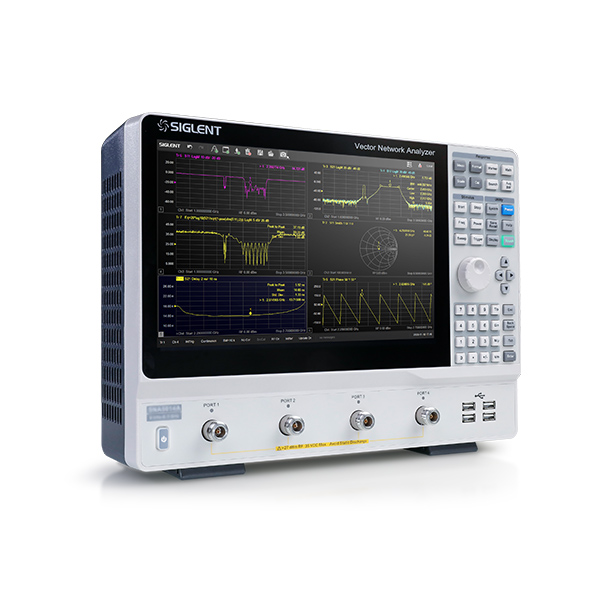

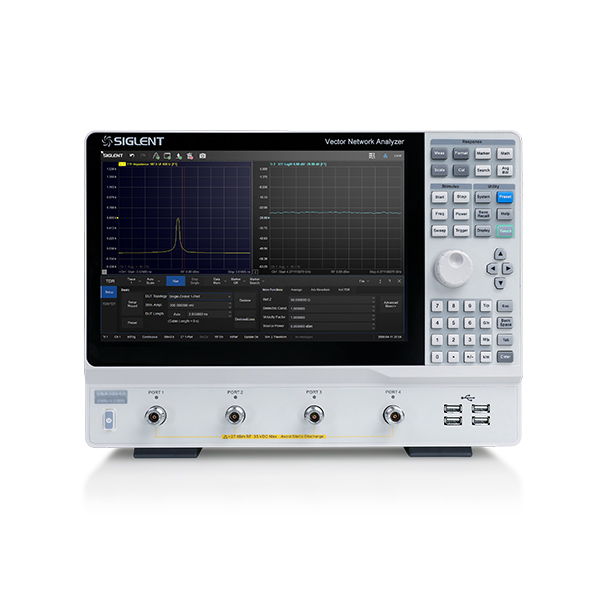

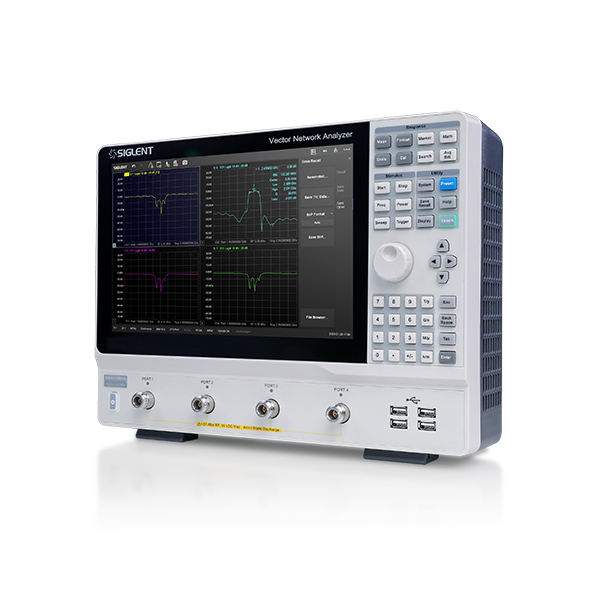

SNA5004A Vector Network Analyzer

4.5 GHz, 4 port RF Vector Network Analyzer
$18,964.00
In Stock
SNA Frequency Range:9kHz-4.5GHz
Ports:4
Frequency Resolution :1Hz
Level resolution:0.05dB
Range of IFBW: 1 Hz-10 MHz
Setting range of output level:-55 dBm ~ +10 dBm

Click the link below

to be redirected to the SIGLENT website for the most comprehensive product details

Click here to view product details

Recommended Accessories

Cable

N-N-6L
N-N cable, 7 GHz bandwidth
$63.00
S06-NMSF-1M
N(M)-SMA(F) RF Cable DC~6 GHz,1000 mm
$63.00
N-SMA-6L
N-SMA cable, 7 GHz bandwidth
$63.00

Calibration parts

F603FE
Mechanical Calibration Kit: OSLT, DC - 4.5 GHz, 3.5mm Female connector
$516.00
F503FE
Mechanical Calibration Kit: OSLT, DC - 4.5 GHz, N-Female connector
$459.00
F603ME
Mechanical Calibration Kit: OSLT, DC - 4.5 GHz, 3.5mm Male connector
$516.00
F503ME
Mechanical Calibration Kit: Open(M), Short(M), Match(M,50), Through(F-F), 4.5 GHz
$459.00
SEM5004A
4 ports, 9 kHz~4.5 GHz, SMA female
$3,470.00

Others

ASP-26
Adjustable Single-end TDR probe DC~26.5 GHz
$1,685.00
ADP-26
Adjustable Differential TDR probe DC~26.5 GHz
$1,811.00
ASP-18
Adjustable Single-end TDR probe DC~18 GHz
$1,432.00
ADP-18
Adjustable Differential TDR probe DC~18 GHz
$1,558.00
SNA-TB01
RF demonstration board
$1,369.00
USB-GPIB
USB-GPIB Adapter
$167.00

Recommended Options

Options

SNA5000-HPR
High Performance Reference Source
$1,379.00
SNA5000-SA
Spectrum Analyzer (SW)
$2,059.00
SNA5000-TDA
Includes time domain low-pass step and pulse/bandpass response for reflection and transmission (software license)
$1,403.00
SNA5000-TDR
Advanced TDR adds traditional config, eye diagrams, and custom pulse shapes to TDA (software license)
$7,694.00
SNA5000-PM
Pulse measurement(SW)
$5,739.00
SNA5000-GC
Gain Compression Measurements (software license)
$3,772.00
SNA5000-VMM
Vector mixer measurement Option (software license)
$5,382.00
SNA5000-PV
Performance test (SW)
$460.00
SNA5000-SMM
Scalar mixer measurement (SW)
$2,714.00
SNA5000-MT
Material measurement (SW)
$4,370.00

Standard Accessories

Standard

USB Cable
Wireless Mouse
Calibration certificate
Power-Cord
Quick Start
Protective Cover
Protective Cover for SNA5000A, SDS6000A, SSA5000A

Downloads

SNA5000A-Datasheet

Version: EN04B

Time: 21/7/2025

Products-Selection-Guide

Version: 202511

Time: 21/7/2025
