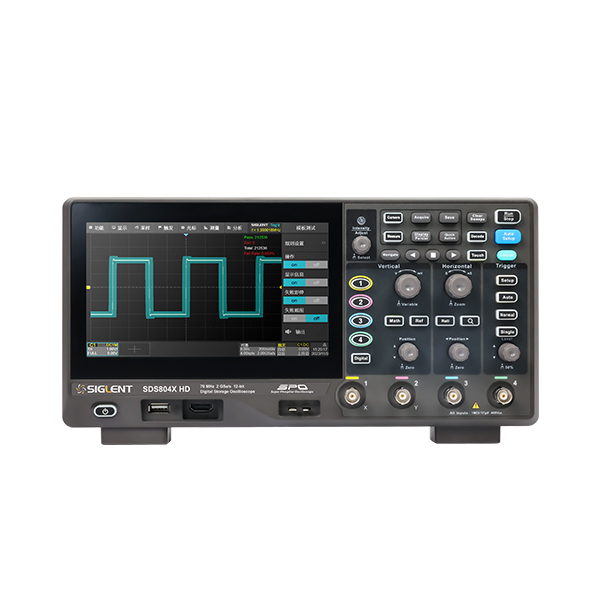

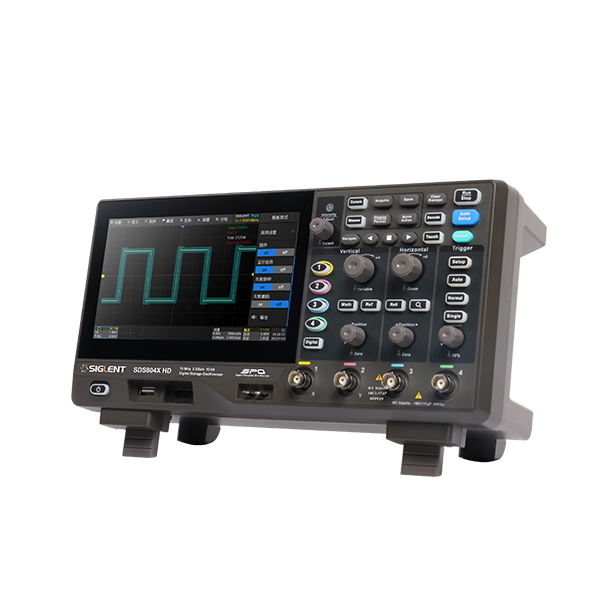

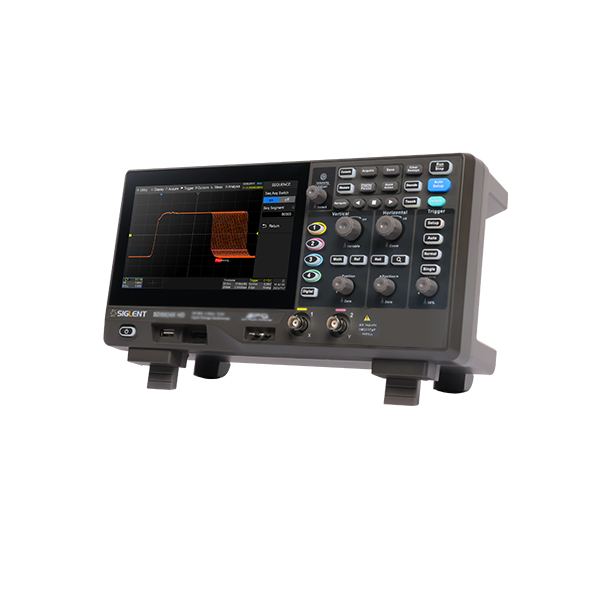

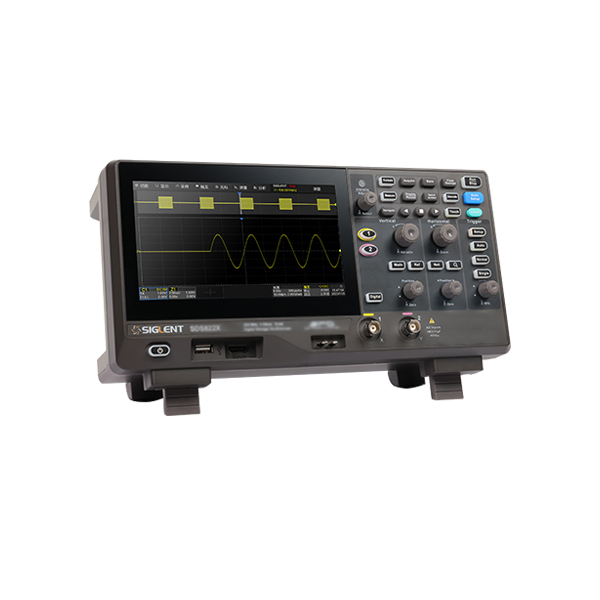

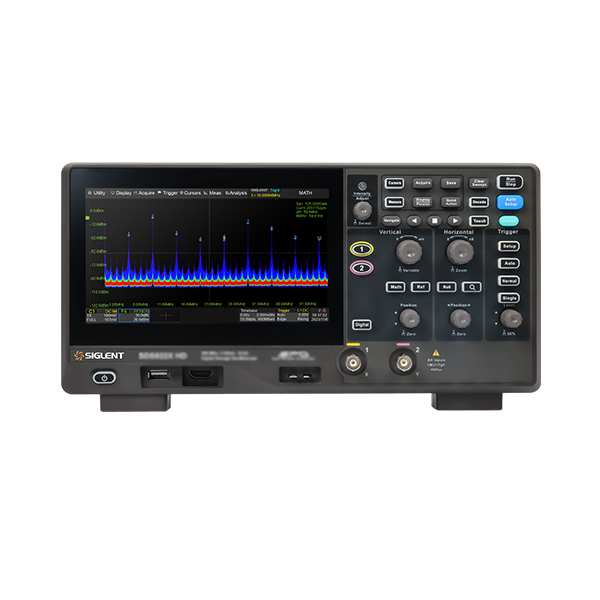

SDS812X HD High Resolution Oscilloscopes

100 MHz, 2 channel Oscilloscope with passive probes
$461.00
In Stock In Stock: will ship in 1-3 days
Bandwidth:100 MHz
Channels:2
Max Sampling rate:2 GSa/s
ADC:12-bit

Click the link below

to be redirected to the SIGLENT website for the most comprehensive product details

Click here to view product details

Recommended Accessories

Probe

HPB4010
40 MHz, 10 kVrms High Voltage Probe
$604.00
DPB5700
70 MHz, 7kV Differential Voltage Probe
$2,059.00
DPB5700A
100 MHz, 7kV Differential Voltage Probe
$2,680.00
DPB5150
70 MHz, 1500 V Differential Voltage Probe
$1,070.00
DPB5150A
100 MHz, 1500 V Differential Voltage Probe
$1,392.00
DPB1300
50 MHz, 1300 V Differential Voltage Probe
$562.00
CP6030A
50 A, 100 MHz Current Probe
$3,686.00
CP6150
300 A, 12 MHz Current Probe
$4,944.00
CP4070A
200 A, 300 kHz Current Probe
$914.00
CP6030
50 A, 50 MHz Current Probe
$2,628.00
CP4050
140 A, 1 MHz Current Probe
$1,317.00
CP4070
200 A, 300 kHz Current Probe
$811.00
CPL5100
100 A, 600 kHz Current Probe
$535.00
CP4020
60 A, 200 kHz Current Probe
$535.00
SLA1016
16 CH Logic Probe for SSDS1X-E and SDSX-E Series
$489.00

Others

DF2001A
Deskew fixture for voltage and current probes
$305.00
STB3
Oscilloscope training and teaching signal board
$236.00
SAG1021I
Isolated USB function/arbitrary waveform generator, 125 Msa/s, 16 kpts Arb Wave Length, Isolation Voltage ¡À42 Vpk (Hardware)
$328.00

Recommended Options

Analysis Options

SDS800XHD-PA
Power Analysis Software
$316.00

Standard Accessories

Probe

PP510
Bandwidth: 6 MHz (X1) / 100 MHz (X10) Switchable

85 pf / 18 pf

Maximum input: 300 V / 600V

Operating Temperature: 0 - 50 degrees C

Standard Configurations

USB Cable
Calibration certificate
Power-Cord
Quick Start

Downloads

SDS800X-HD-Datasheet

Version: EN01D

Time: 21/7/2025

SDS800X-HD-User-Manual

Version: EN01A

Time: 21/7/2025

Products-Selection-Guide

Version: 202511

Time: 21/7/2025
