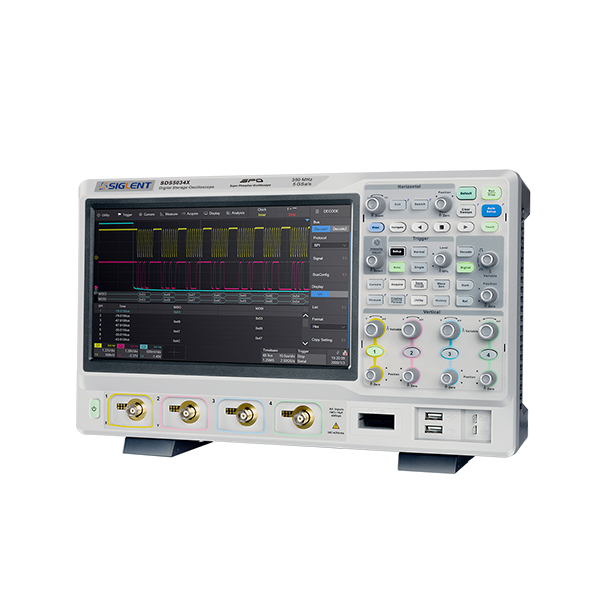

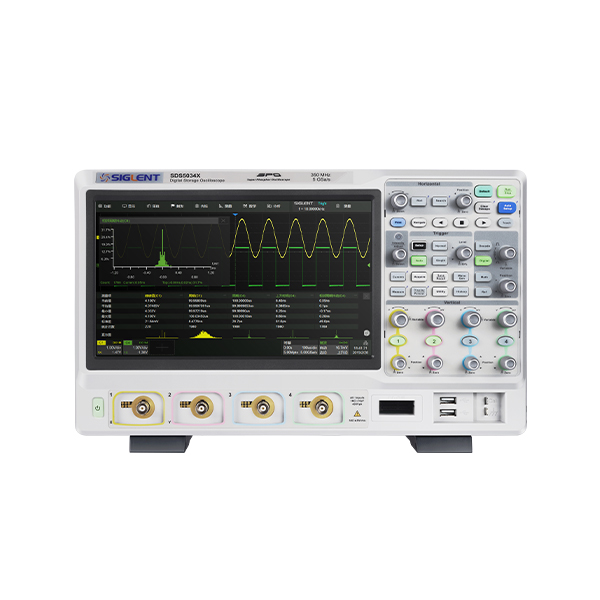

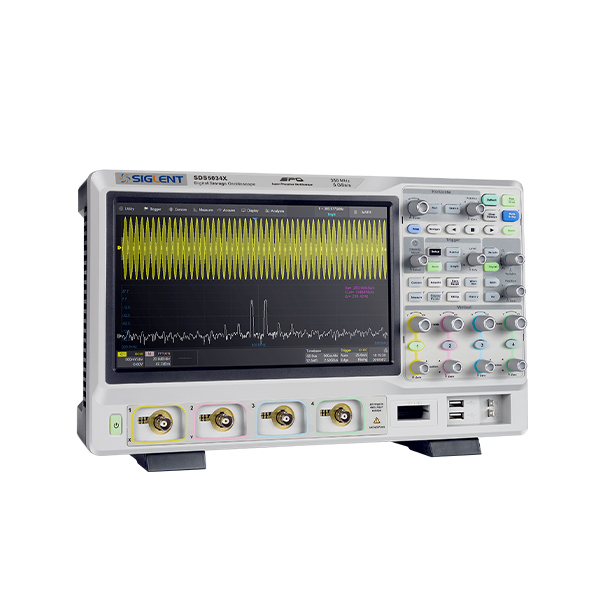

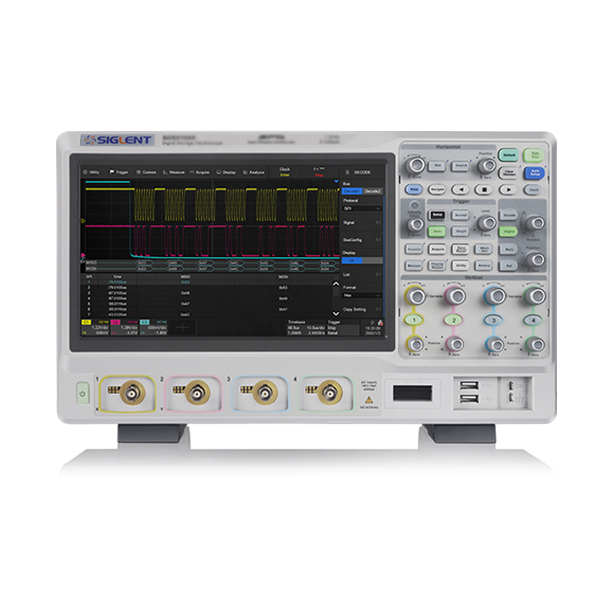

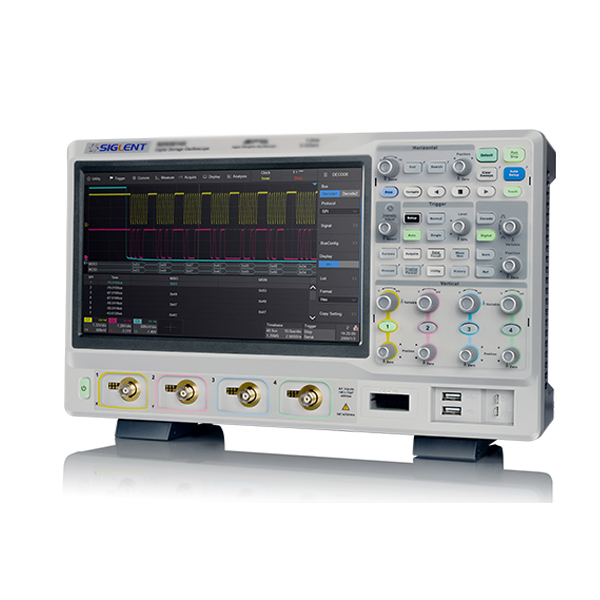

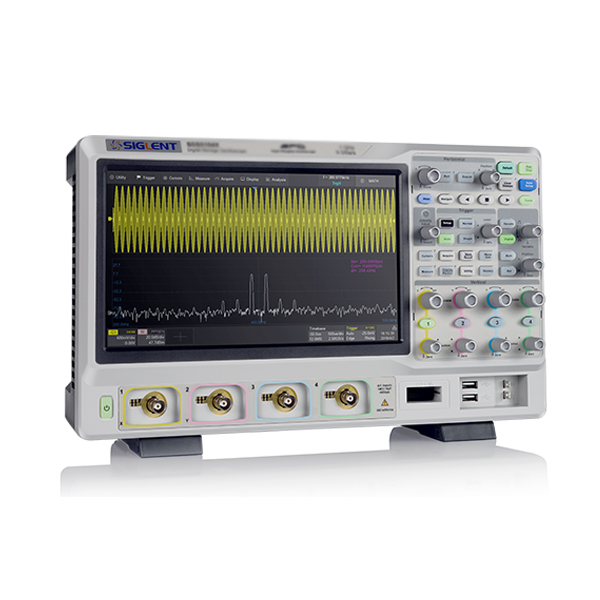

SDS5104X Digital Oscilloscopes

1 GHz, 4 channel Oscilloscope with passive probes
$8,683.00
In Stock In Stock: will ship in 1-3 days
SIGLENT's SDS5000X Series Digital Oscilloscopes are available in 350 MHz/500 MHz/1 GHz bandwidths.
SDS5104X offers a 1 GHz bandwidth, comes with 4 channels, 5 GSa/s sampling rate, 250 Mpts/CH maximum memory depth, and a waveform capture rate of up to 110,000 wfm/s.
Comes with our 3 year warranty.

Click the link below

to be redirected to the SIGLENT website for the most comprehensive product details

Click here to view product details

Recommended Accessories

Probe

SP6150A
1.5 GHz passive probe; attenuation ratio 10:1; input resistance 500 ¦¸; input capacitance 1.8 pF; Max. input voltage 8.5 V
$286.00
SAP4000P
4 GHz power rail probe; offset voltage range ¡À24 V; dynamic range ¡À600 mV
$5,208.00
SAP1000
Active Probe, 2 GHz
$1,149.00
HPB4010
40 MHz, 10 kVrms High Voltage Probe
$604.00
DPB5700A
100 MHz, 7kV Differential Voltage Probe
$2,680.00
DPB5700
70 MHz, 7kV Differential Voltage Probe
$2,059.00
DPB5150
70 MHz, 1500 V Differential Voltage Probe
$1,070.00
DPB5150A
100 MHz, 1500 V Differential Voltage Probe
$1,392.00
DPB1300
50 MHz, 1300 V Differential Voltage Probe
$562.00
SCP5030
50 A, 50 MHz Current Probe
$2,622.00
SCP5030A
50 A, 100 MHz Current Probe
$3,427.00
SCP5150
300 A, 12 MHz Current Probe
$4,232.00
SCP5500
750 A, 2 MHz Current Probe
$6,877.00
CP6500
750 A, 5 MHz Current Probe
$6,889.00
CP6030A
50 A, 100 MHz Current Probe
$3,686.00
CP6150
300 A, 12 MHz Current Probe
$4,944.00
CP4070A
200 A, 300 kHz Current Probe
$914.00
CP6030
50 A, 50 MHz Current Probe
$2,628.00
CP4050
140 A, 1 MHz Current Probe
$1,317.00
CP4070
200 A, 300 kHz Current Probe
$811.00
CP4020
60 A, 200 kHz Current Probe
$535.00
CPL5100
100 A, 600 kHz Current Probe
$535.00
SPL2016
Waveform generator (software)
$546.00

Others

DF2001A
Deskew fixture for voltage and current probes
$305.00
STB3
Oscilloscope training and teaching signal board
$236.00
SDS2000X-RMK
Rack mount kit is designed for use with only one instrument, is compatible with the SDS2000,SDS2000X, SDS2000X Plus series Oscilloscope; Height 6U
$167.00
BAG-S2
Soft Carry Case for SDS2000X, SDS2000X Plus, SDS2000X HD, SDS5000X, SSA3000X, SVA1000X, SSA3000X-R, SSA3000X Plus
$167.00
SAG1021I
Isolated USB function/arbitrary waveform generator, 125 Msa/s, 16 kpts Arb Wave Length, Isolation Voltage ¡À42 Vpk (Hardware)
$328.00

Recommended Options

Trigger/Decode Options

SDS-5000X-ARINC
ARINC429 decoding activation license for the SDS5000X series
$608.00
SDS-5000X-SENT
SENT trigger and decode (SW)
$385.00
SDS-5000X-Manch
Manchester decode (SW)
$385.00
SDS-5000X-CANFD
CAN FD trigger and decode (SW)
$385.00
SDS-5000X-I2S
I3S trigger and decode (SW)
$385.00
SDS-5000X-FlexRay
FlexRay trigger and decode (SW)
$385.00
SDS-5000X-1553B
MIL-STD-1554B trigger and decode (SW)
$385.00

Analysis Options

SDS-5000X-PA
Power Analysis (software): includes Power Quality, Current Harmonics, and more
$943.00

Upgrades Options

SDS-5000X-4BW10
500 MHz to 1 GHz bandwidth upgrade (4-ch model)
$2,724.00
SDS-5000X-4BW05
Upgrade 350 MHz to 500 MHz (4-CH model)
$3,978.00

Standard Accessories

Probe

SP3050A Passive Probe
Bandwidth: 500 MHz

8-20 pf, 10 Mohm ± 1%

Maximum input:?CAT Ⅱ 400 Vrms

Operating temperature 0 to 50 degrees

Standard Configurations

USB Cable
Wireless Mouse
Calibration certificate
Power-Cord
Quick Start

Downloads

Products-Selection-Guide

Version: 202511

Time: 21/7/2025

SDS5000X-Datasheet

Version: EN02E

Time: 21/7/2025

SDS5000X-User-Manual

Version: E01E

Time: 21/7/2025
