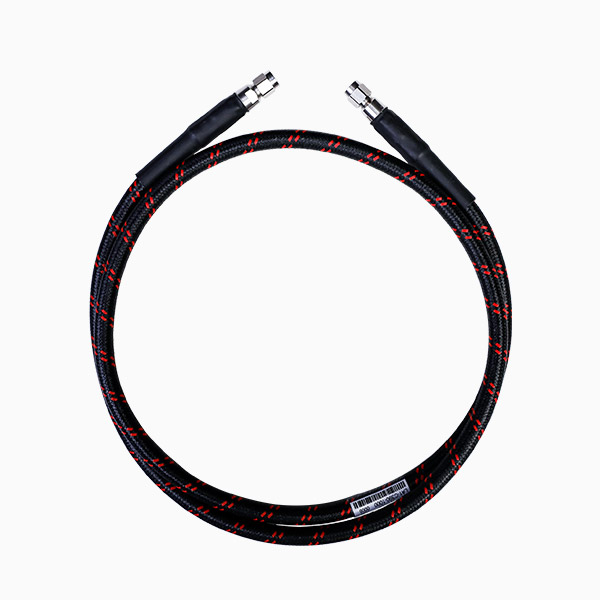

SMA-SMA-18L
US customer service via email, phone, or chat
$339.00
Out of Stock
Inventory Available on or about 12/26/25
Connector 1: SMA (Male)
Connector 2: SMA (Male)
Length...
Connector 2: SMA (Male)
Length...
Connector 1: SMA (Male)
Connector 2: SMA (Male)
Length : 1000 + 10 (mm)
Insertion Loss (DC - 18 GHz, dB): 2.3
Impedance 50 Ω
Frequency DC-18GHz
VSWR <1.25 to 18 GHz
Phase stability vs. Flexure <±10° @18 GHz (Wrapped around a 50mm diameter mandrel)
Amplithttps://siglentna.com/wp-content/uploads/2022/03/N-N-18L-N-SMA-18L_Datasheet.pdfude stability vs. Flexure <±0.1 dB@18 GHz (Wrapped around a 50mm diameter mandrel)
Click to view the [download id="30950" template="SMA-SMA-18L Datesheet"]
