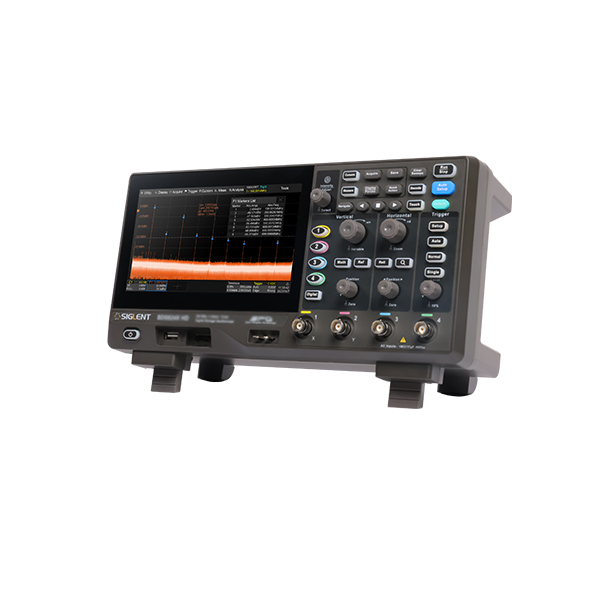

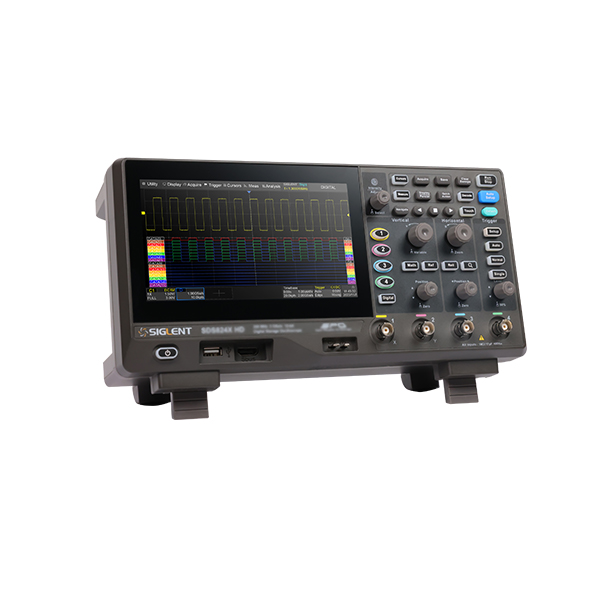

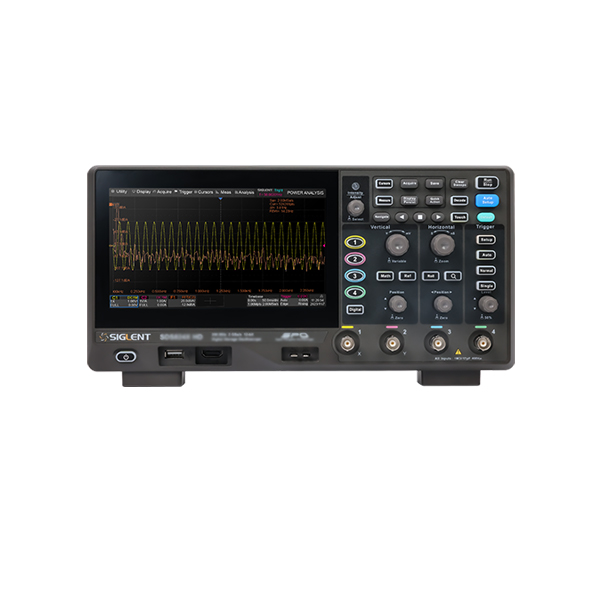

SDS814X HD High Resolution Oscilloscopes
100 MHz, 4 channel Oscilloscope with passive probes
$528.00
Original Price:$587.00
In Stock
In Stock: will ship in 1-3 days
Bandwidth:100 MHz
Channels:4
Max Sampling rate:2 GSa/s
ADC:12-bit
Channels:4
Max Sampling rate:2 GSa/s
ADC:12-bit
Click the link below
to be redirected to the SIGLENT website for the most comprehensive product details
Recommended Accessories
Probe
Recommended Software
Analysis Options
Standard Accessories
Probe
Bandwidth: 6 MHz (X1) / 100 MHz (X10) Switchable
85 pf / 18 pf
Maximum input: 300 V / 600V
Operating Temperature: 0 - 50 degrees C
85 pf / 18 pf
Maximum input: 300 V / 600V
Operating Temperature: 0 - 50 degrees C
Standard Configurations
A power cord conforming to the user's country's standards is...
Quick Start
Calibration certificate
USB data line for transmitting data and calibrating the unit...
