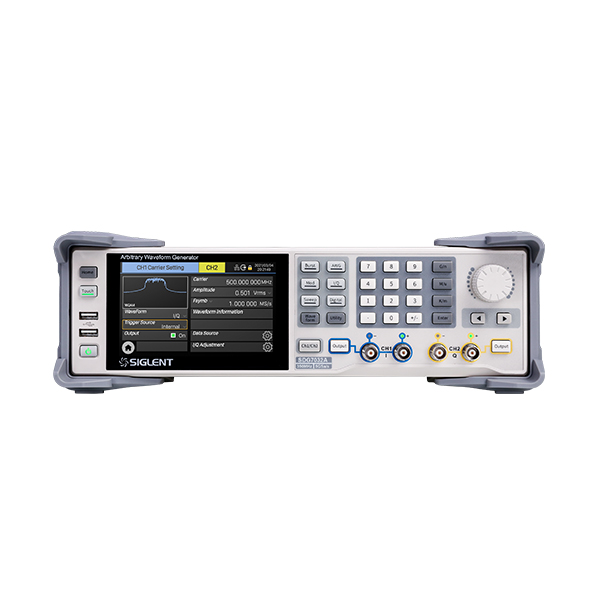

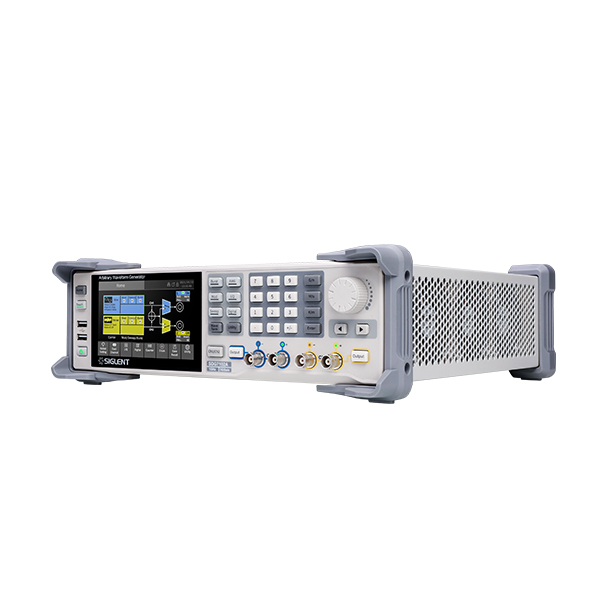

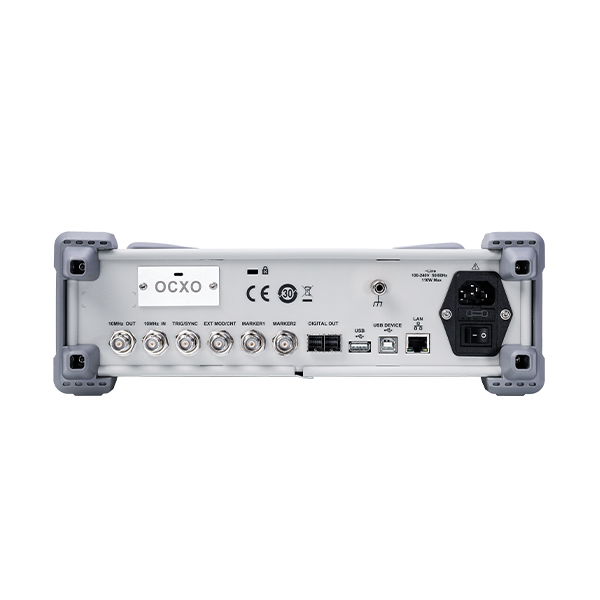

SDG7102A Signal Source

1 GHz, 2 Channel Function/Arbitrary Waveform Generator
$21,147.00
In Stock
Output Frequency:1 GHz
Channels:2
Max Sampling rate:5 GSa/s
ADC:14-bit
Max Waveform length:512 Mpts

Click the link below

to be redirected to the SIGLENT website for the most comprehensive product details

Click here to view product details

Recommended Accessories

Universal accessories

SSG-RMK
Rack Mount kit; SSG3000X, SSG5000X, SSG5000A, SDG7000A; Height 3U
$217.00
ATT-20DB
20 dB Attenuator
$69.00
USB-GPIB
USB-GPIB Adapter
$167.00
10M_OCXO_L
High accuracy clock source ( Assembled in factory only)
$1,379.00
DIG-LVDS-2
Digital Bus Kit-LVDS (With 33 RF cables)
$1,563.00
DIG-LVTTL
Digital Bus Kit-LVTTL
$1,103.00
DIG-LVDS
Digital Bus Kit-LVDS (Without RF cables)
$1,103.00
SDG-7000A-BW05
350 MHz to 500 MHz bandwidth upgrade (software)
$3,887.00
SDG-7000A-BW10
500 MHz to 1 GHz bandwidth upgrade (software)
$6,578.00

Recommended Options

Options

SDG-7000A-BW05
350 MHz to 500 MHz bandwidth upgrade (software)
$3,887.00
SDG-7000A-BW10
500 MHz to 1 GHz bandwidth upgrade (software)
$6,578.00

Standard Accessories

Standard Configurations

USB Cable
Wireless Mouse
Power-Cord
Quick Start
BNC coaxial cable
3D-FB BNC cable

Downloads

SDG7000A-Datasheet

Version: EN01C

Time: 21/7/2025

Products-Selection-Guide

Version: 202511

Time: 21/7/2025

Quantity

$21,147.00
Selected 1 Items: SDG7102A
