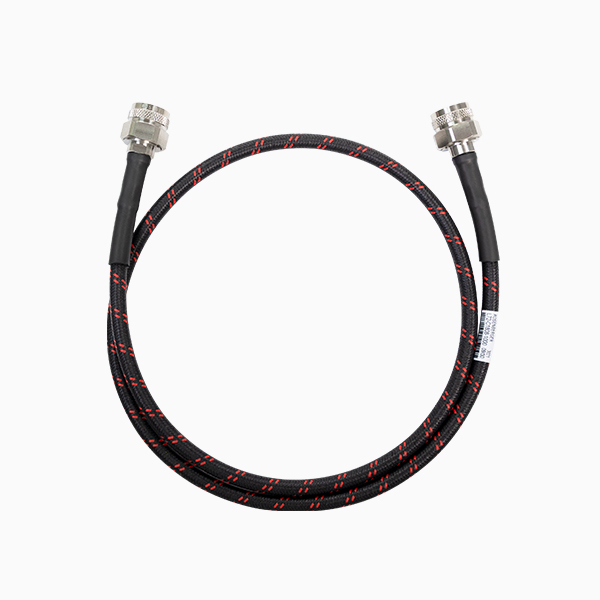

Other Options N-N-18L
US customer service via email, phone, or chat
$339.00
In Stock
In Stock: will ship in 1-3 days
Connector 1: N (Male)
Connector 2: N (Male)
Length : 1...
Connector 2: N (Male)
Length : 1...
Connector 1: N (Male)
Connector 2: N (Male)
Length : 1000 + 10 (mm)
Insertion Loss (DC - 18 GHz, dB): 2.3
Impedance: 50 Ω
Frequency Range: DC - 18 GHz
VSWR: < 1.35 to 18 GHz
Phase stability vs. Flexure: < 10° @ 18 GHz (wrapped around a 50 mm diameter mandrel)
Amplitude Stability vs. Flexure: < 0.1 dB @ 18 GHz (wrapped around a 50 mm diameter mandrel)
Minimum Bend Radius: 50.8 mm
Cable Diameter (with armor): 6.6 mm
Temperature range (operation): -40°C to 150°C
RoHS compliant
Click to view the N-SMA-18L N-N-18L datasheet
