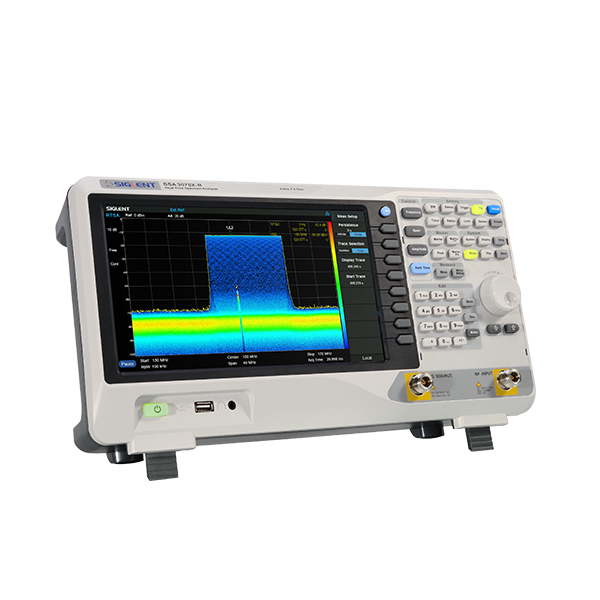

SSA3075X-R
1 year warranty, US customer service via email, phone, or chat
$12,409.00
In Stock
Inventory Available on or about 12/26/25
The SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF signal monitor and analysis. With a capability of 40 MHz analysis bandwidth and 7.2 ?s 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. They also include a tracking generator for network analysis, optional wideband digital modulation analysis, and EMI pre-compliance test.
The SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF signal monitor and analysis. With a capability of 40 MHz analysis bandwidth and 7.2 ?s 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. They also include a tracking generator for network analysis, optional wideband digital modulation analysis, and EMI pre-compliance test.
