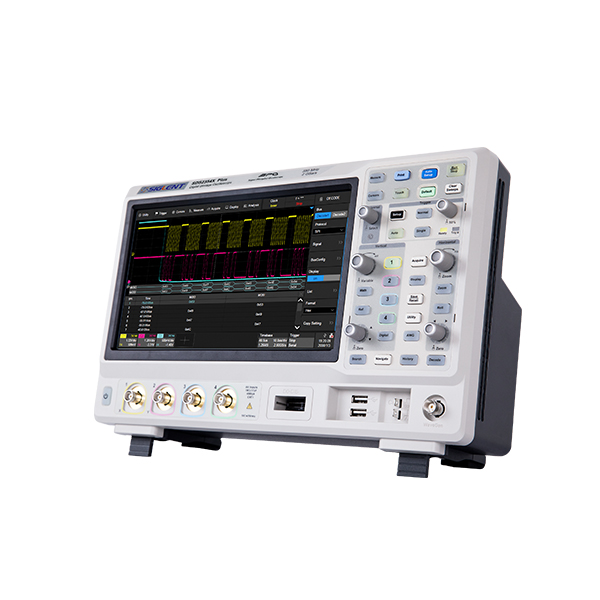

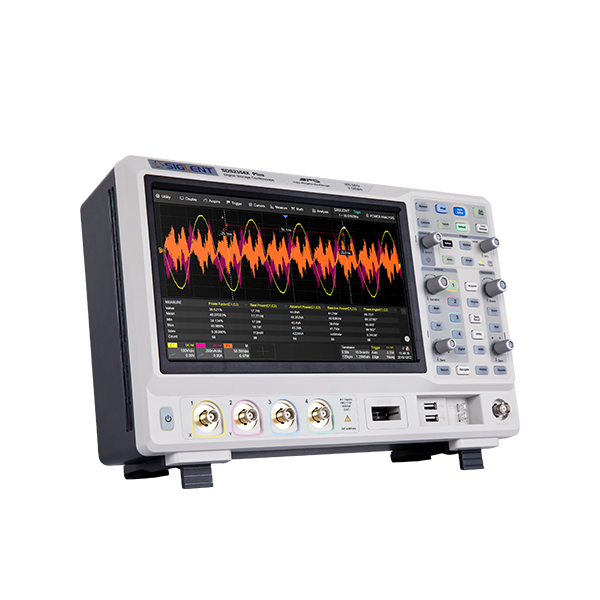

SDS2104X Plus Digital Oscilloscope

1 year warranty, US customer service via email, phone, or chat

$1,119.00 Original Price:~~$1,399.00~~

In Stock In Stock: will ship in 1-3 days

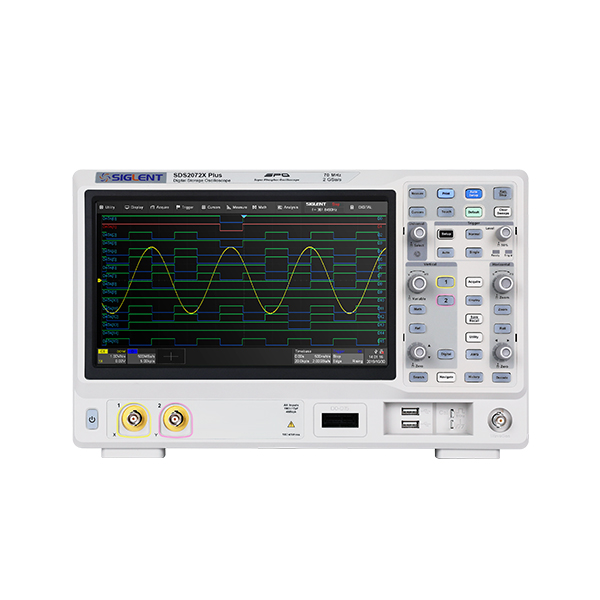

SIGLENT¡¯s SDS2000X Plus series Digital Storage Oscilloscopes are available in bandwidths of 350 MHz, 200 MHz and 100 MHz, have a maximum sample rate of 2 GSa/s, maximum record length of 200 Mpts/ch, and up to 4 analog channels + 16 digital channels mixed-signal analysis ability. n nThe SDS2000X Plus series employs SIGLENT¡¯s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. An impressive array of measurement and math capabilities and options for a 50 MHz waveform generator. n nThe large 10.1¡¯¡¯ capacitive touch screen supports multi-touch gestures, while the remote web control, mouse and external keyboard support greatly improve the operating efficiency of the SDS2104X Plus. n nClick here for complete product specifications

Recommended Accessories

Probe

HPB4010 High Voltage Probe

High Voltage Probe used with any Siglent oscilloscope.

Bandwidth: 40 MHz

Attenuation ratio: 1000 : 1

Maximum input differential voltage: 10 KV; DC / AC (rms),?pulse ¨Q 20KV peak to peak; sine wave ¨Q 7KV rms

Accuracy: <= 3%

$604.00

DPB1300 Differential High-Voltage Probe

Bandwidth: 50MHz; Rise Time ¡Ü7ns; DC Accuracy ¡À2%; Max Input: 600 V CATIII, 1000 V CATII; Max Differential Test Voltage (DC + Peak AC): 50 X: ¡À130 V, 500 X:¡À1300 V. Input impedance/capacitance: 5 M¦¸/<4 pF(Single-ended), 10 M¦¸/< 2 pF(Two inputs); DC 12 V/1.3 A Power

$562.00

DPB5150A Differential High-Voltage Probe

Bandwidth: 100 MHz

Maximum input differential voltage: 1500 V (DC + AC)

Range selection (attenuation ratio): X50 / X500

Accuracy: +/- 2%

Standard USB power adapter 5V/1A

$1,392.00

DPB5150 Differential High-Voltage Probe

Bandwidth: 70 MHz

Maximum input differential voltage: 1500 V (DC + AC)

Range selection (Attenuation ratio): X50 / X500

Accuracy: +/- 2%

Standard USB power adapter 5V/1A

$1,070.00

DPB5700 Differential Hi-Voltage Probe

Bandwidth: 70 MHzMaximum input differential voltage: 7000 V (DC + AC)Range selection (attenuation ratio): X100 / X1000Accuracy: +/- 2%Standard USB power adapter 5V/1A

$2,059.00

DPB4080 Differential High-Voltage Probe £¨Discontinued£©

Bandwidth: 50 MHz

Max. input differential Voltage: 800 V (DC + Peak AC)

Range Selection (Attenuation ratio): X10 / X100

Accuracy: +/- 1%

Standard DC power adapter (9V/1A)

$489.00

DPB5700A Differential High-Voltage Probe

Bandwidth: 100 MHzMaximum input differential voltage: 7000 V (DC + AC)Range selection (attenuation ratio): X100 / X1000Accuracy: +/- 2%Standard USB power adapter 5V/1A

$2,680.00

CP6150 Current Probe

Bandwidth: 12 MHz Maximum Continuous Current: 150 Arms Peak Current: 300 A Switching Ratio: 30A(0.1V/A£©; 150A(0.01V/A) Power Supply: DC 12V/1A Accuracy:?30A(¡À1%¡À10mA); 150A(¡À1%¡À100mA)

$4,944.00

CP6030A Current Probe

Bandwidth: 100 MHz

Maximum Continuous Current: 30 Arms

Peak Current: 50 A

Switching Ratio: 5 A / 30 A

Accuracy: 5 A (¡À1% ¡À1 mA); 30 A (¡À1% ¡À10 mA)

Power: Standard 12 V / 1 A DC Power Adapter (included)

$3,686.00

CP6030 Current Probe

Bandwidth: 50 MHz

Maximum Continuous Current: 30 Arms

Peak Current: 50 A

Switching Ratio: 5 A / 30 A

Accuracy:?5 A (¡À1% ¡À1 mA); 30 A (¡À1% ¡À10 mA)

Power: Standard 12 V / 1.2 A DC Power Adapter (included)

$2,628.00
